Visual Systems

Jan 23, 2018 · Sohaj Singh Brar

Readings

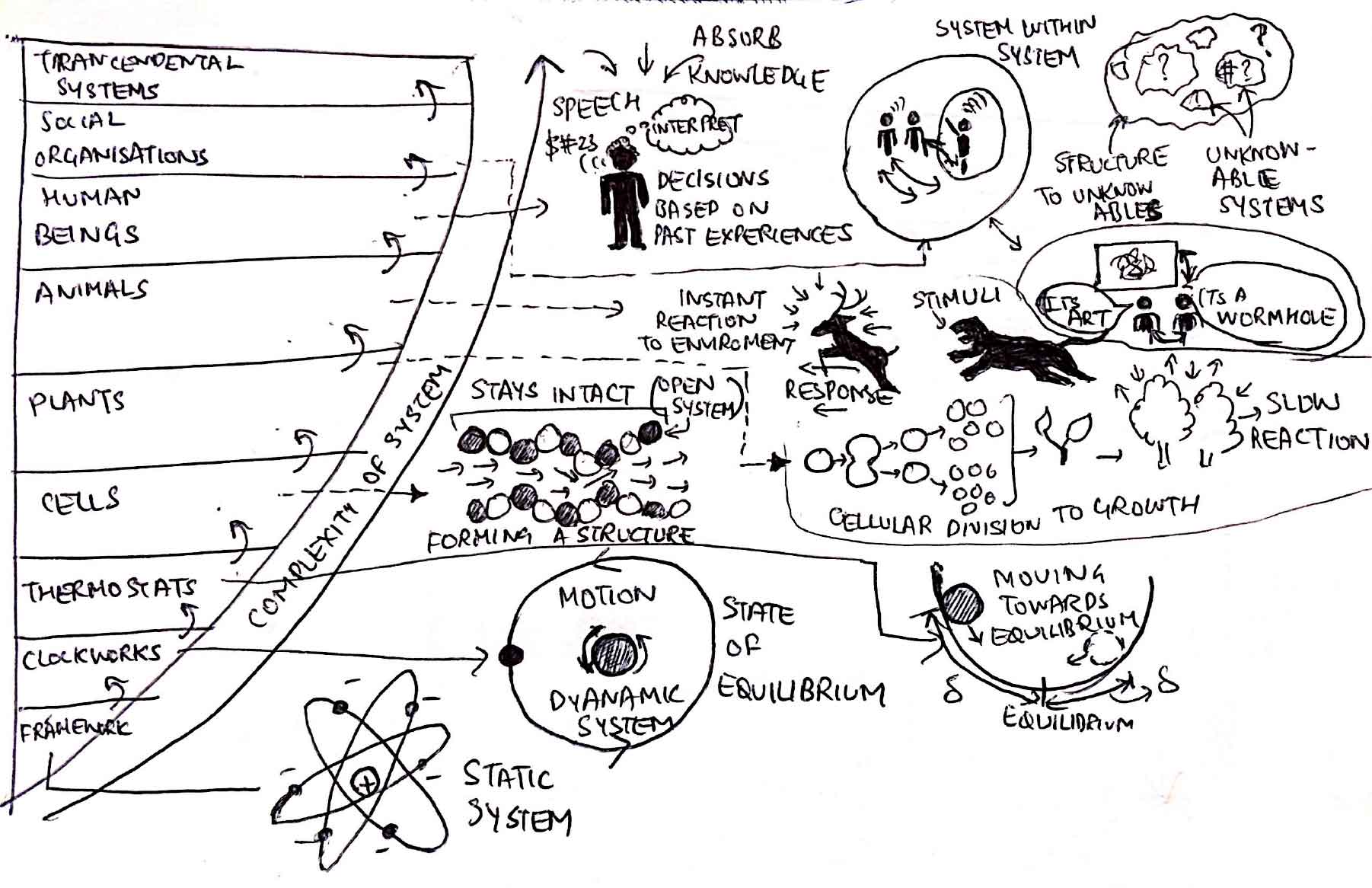

Create a diagram outlining Boulding’s framework; add your own examples.

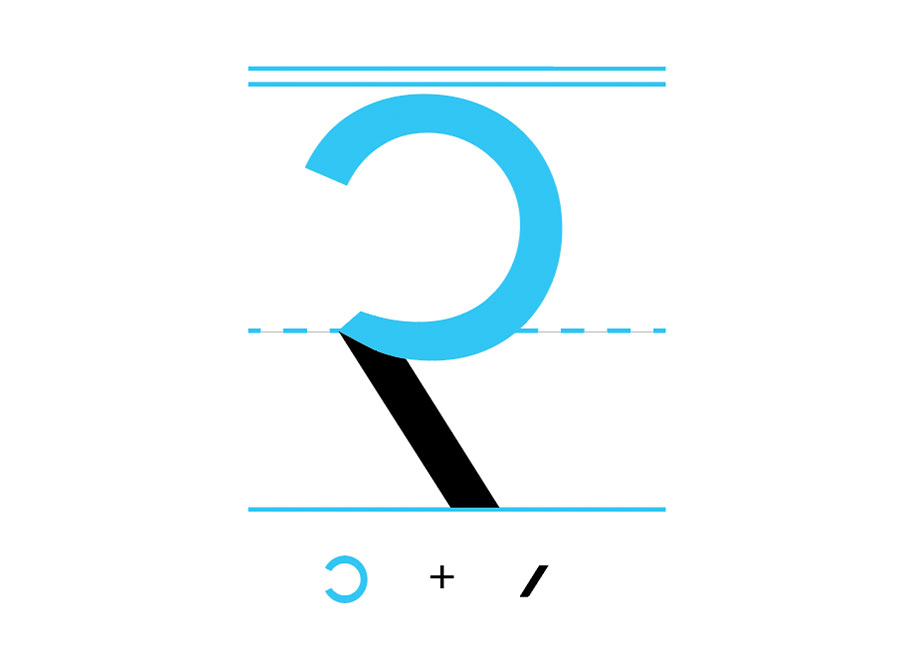

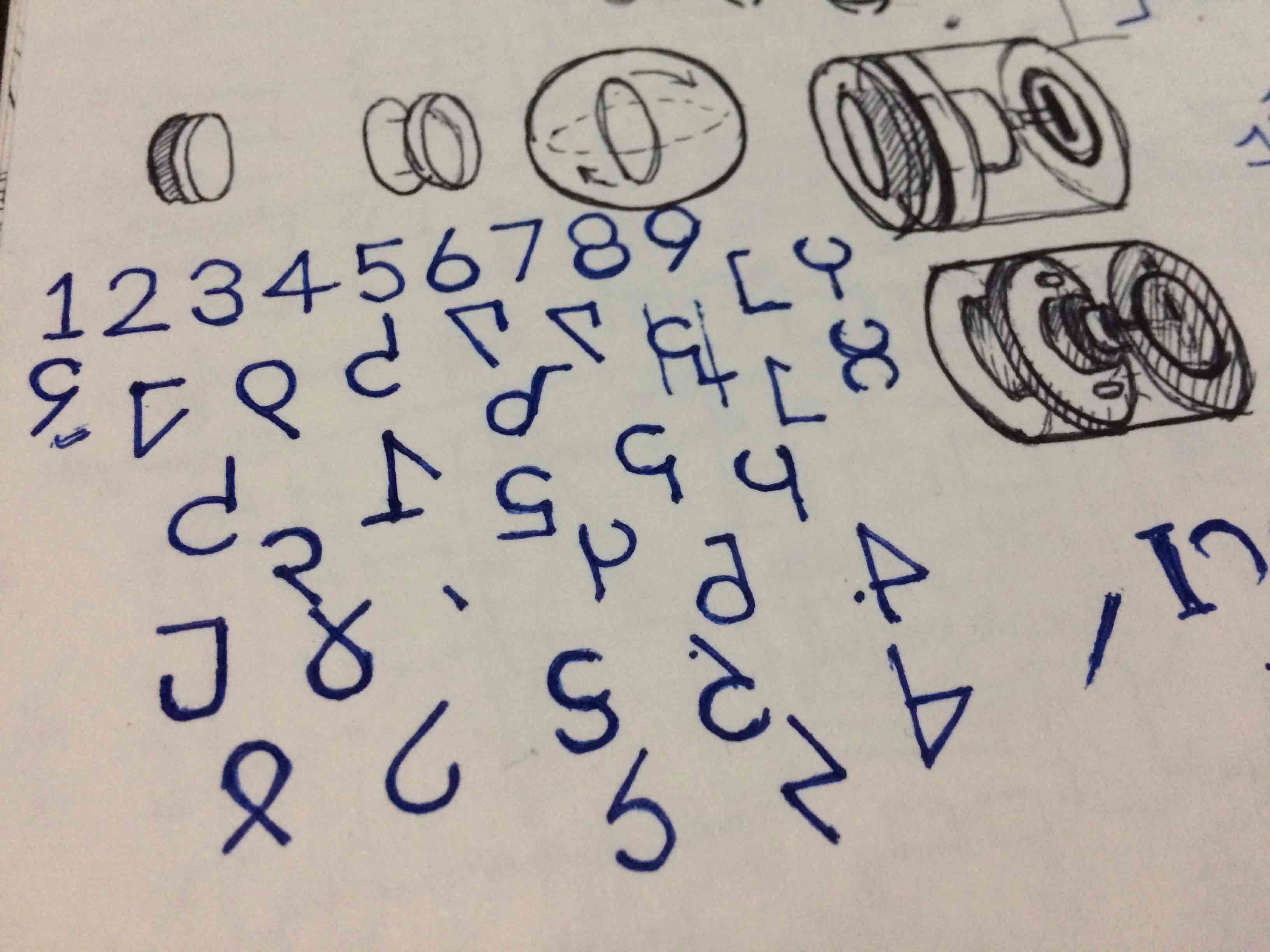

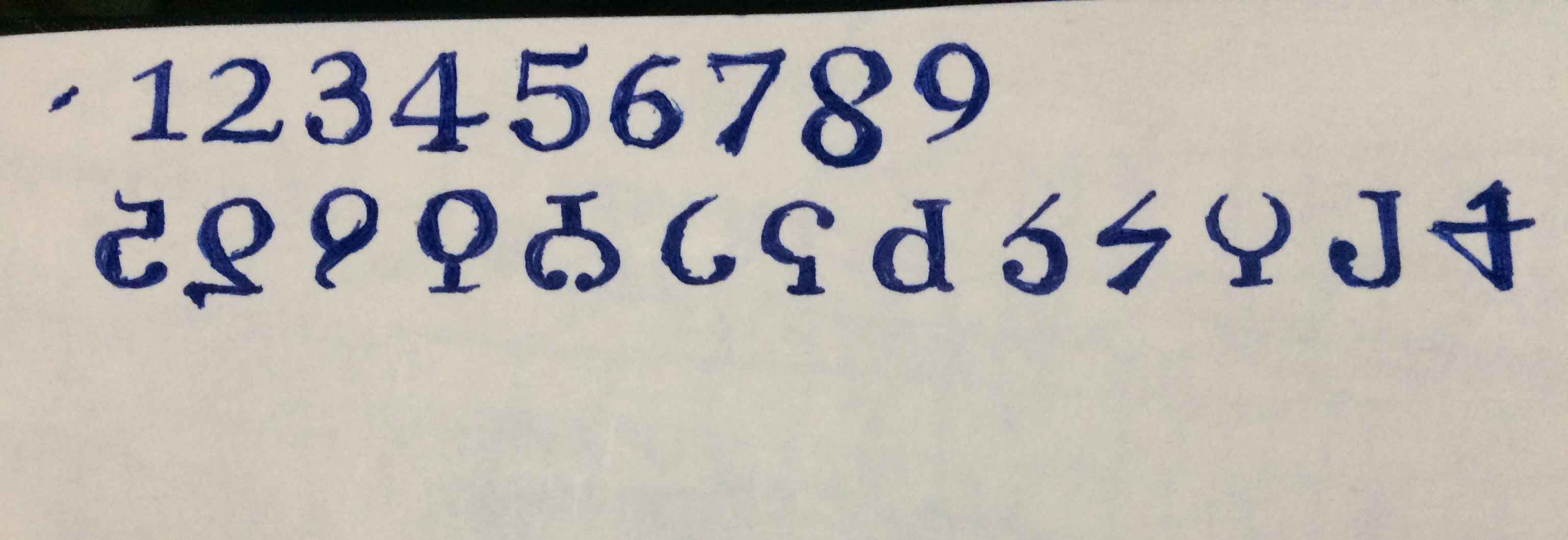

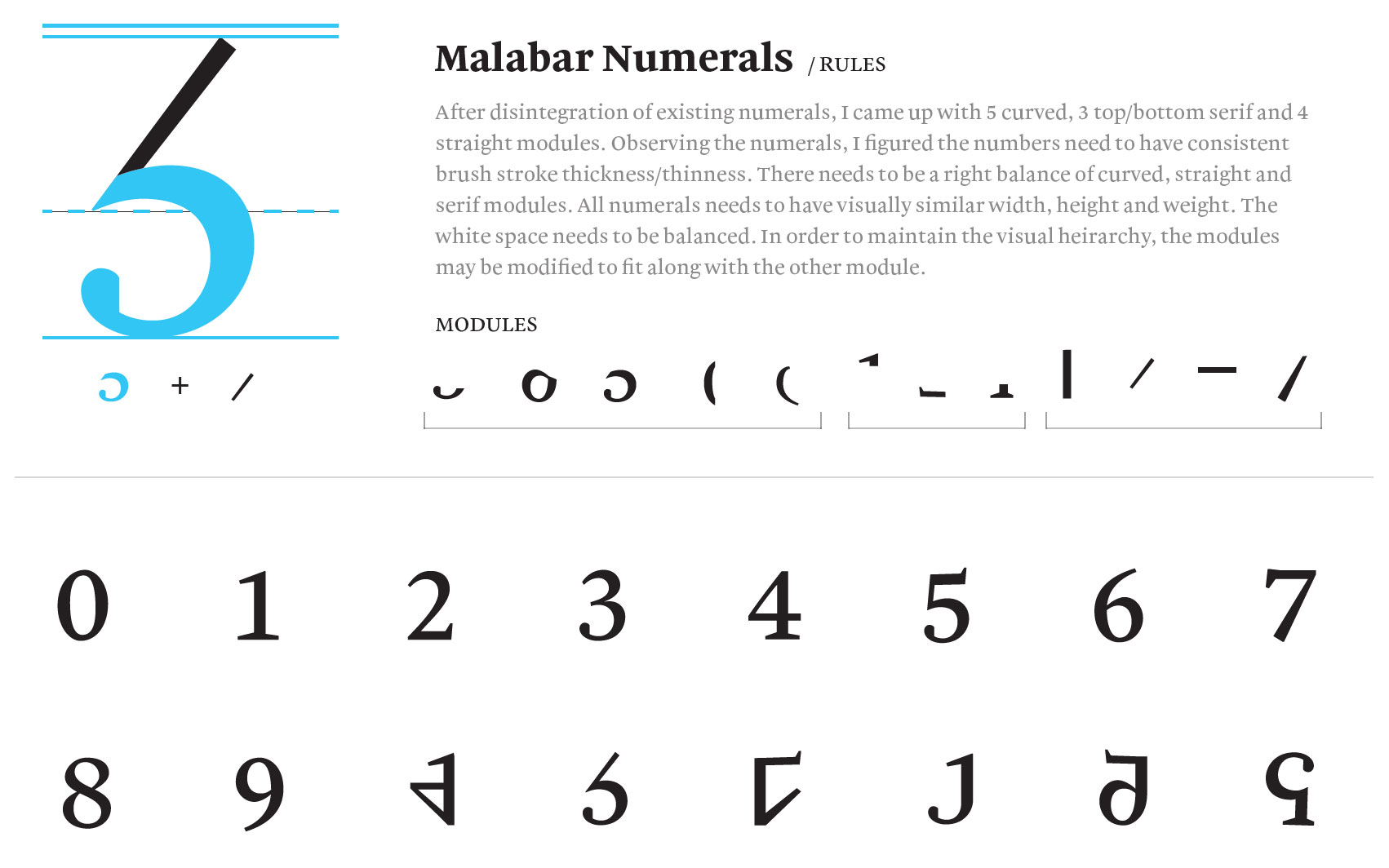

Numerals Exercise

Create a diagram outlining Boulding’s framework; add your own examples.

Counting Systems

Jan 27, 2018 · Sohaj Singh Brar

Readings

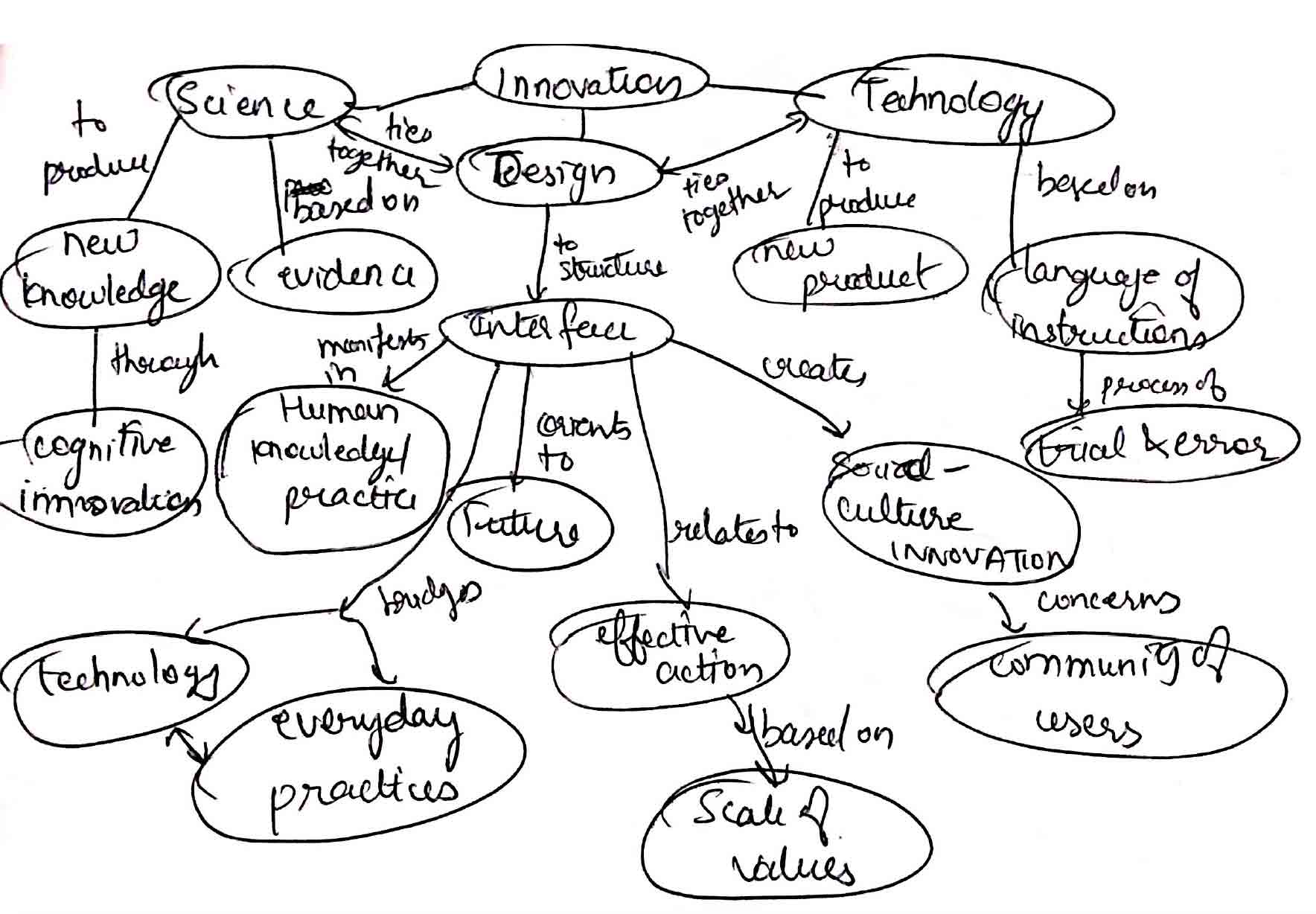

Create sketch notes or a concept map of Bonsiepe’s key ideas and models.

Binary animation

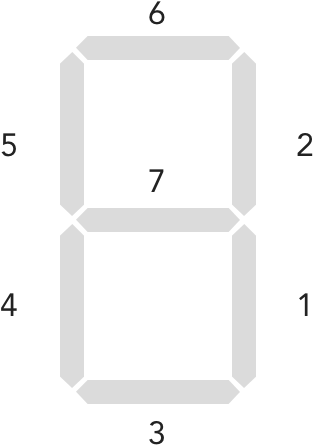

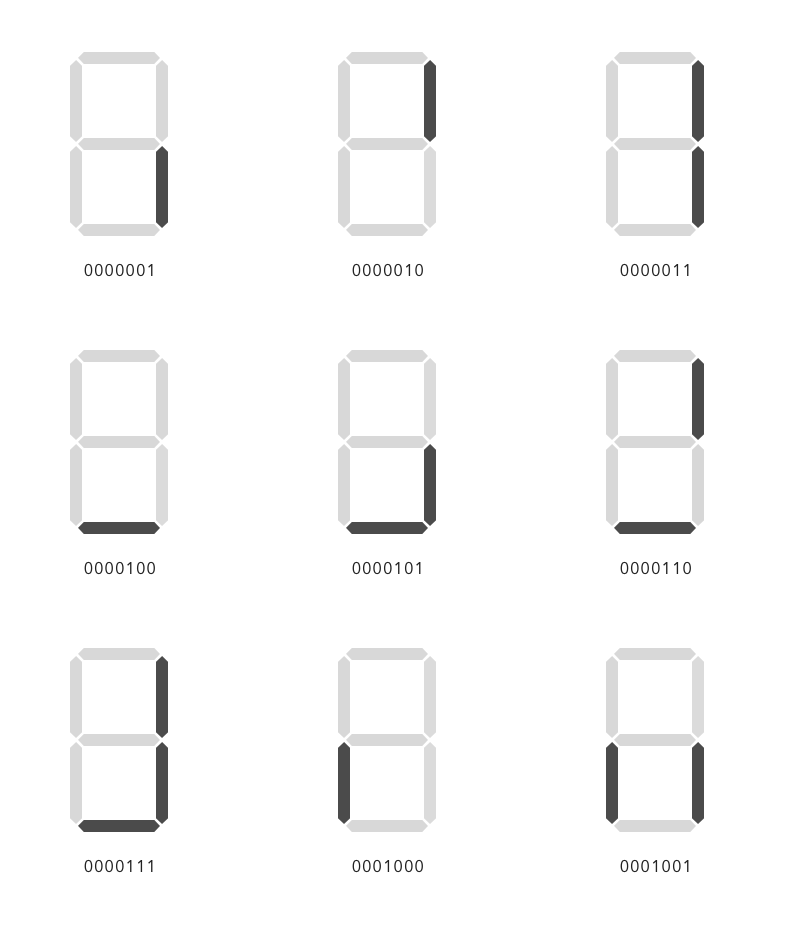

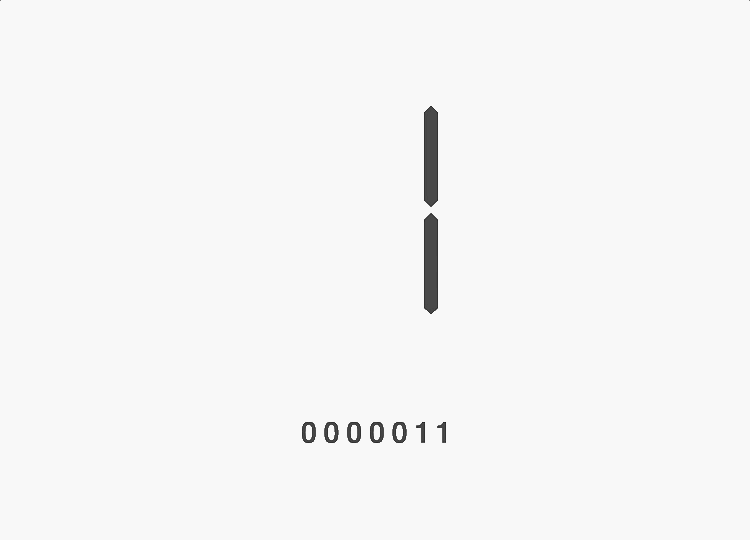

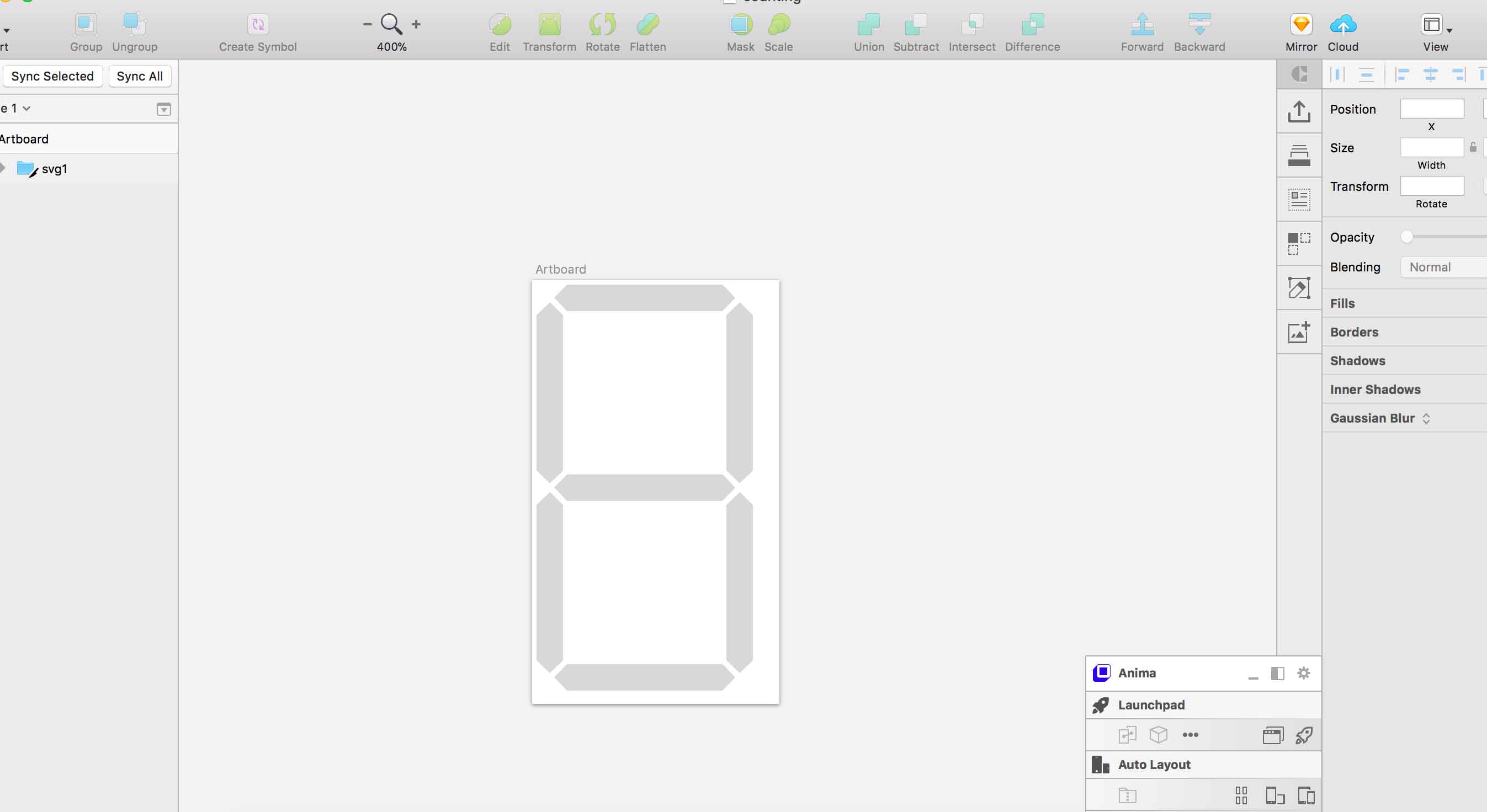

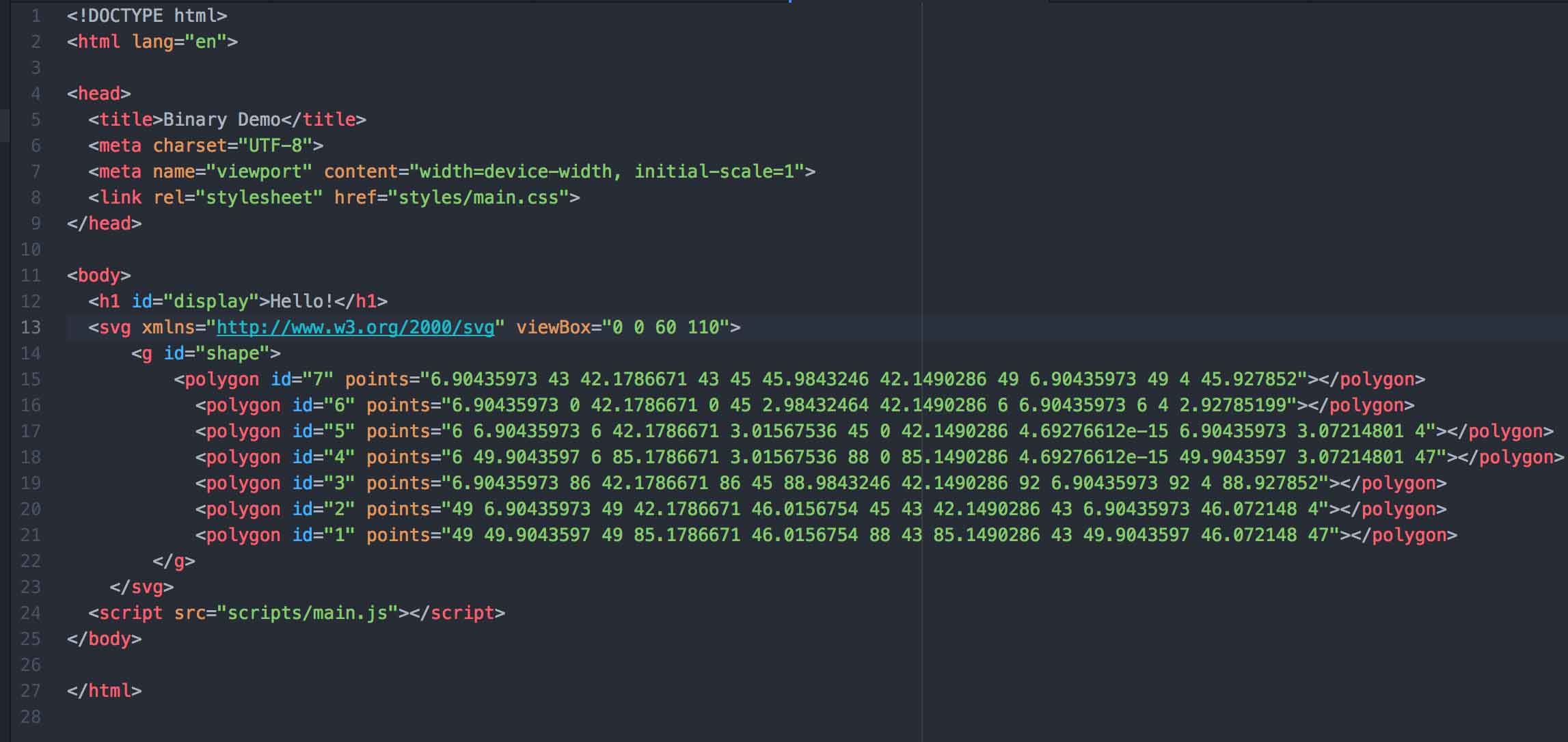

Animate every combination of segments in a 7-segment LCD digital numeric display. Each segment can be on (1) or off (0), creating 128 possible combinations of off + on. Each combination is represented by a base 2 number, i.e., 000 0000 to 111 1111. List the numbers 0 to 127 (in base 2) to create a “display list” to drive the animation

Hello!

All combinations animation

Numerals Animation

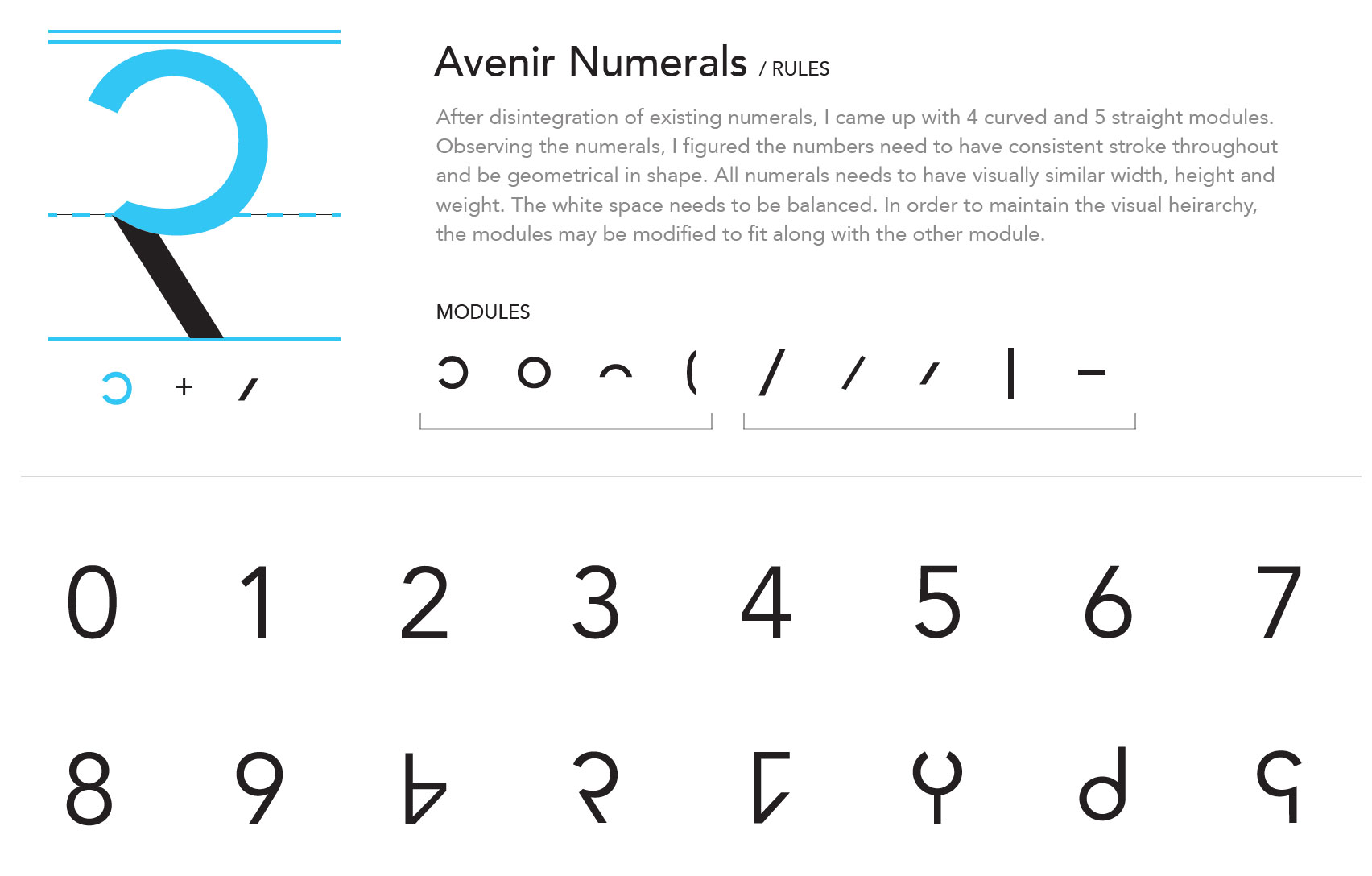

Create a second animation displaying the segmented numerals from 0 to 9. For this, you will need to create a second display list (with only 10 lines)

Numerals animation

Hello!


Close

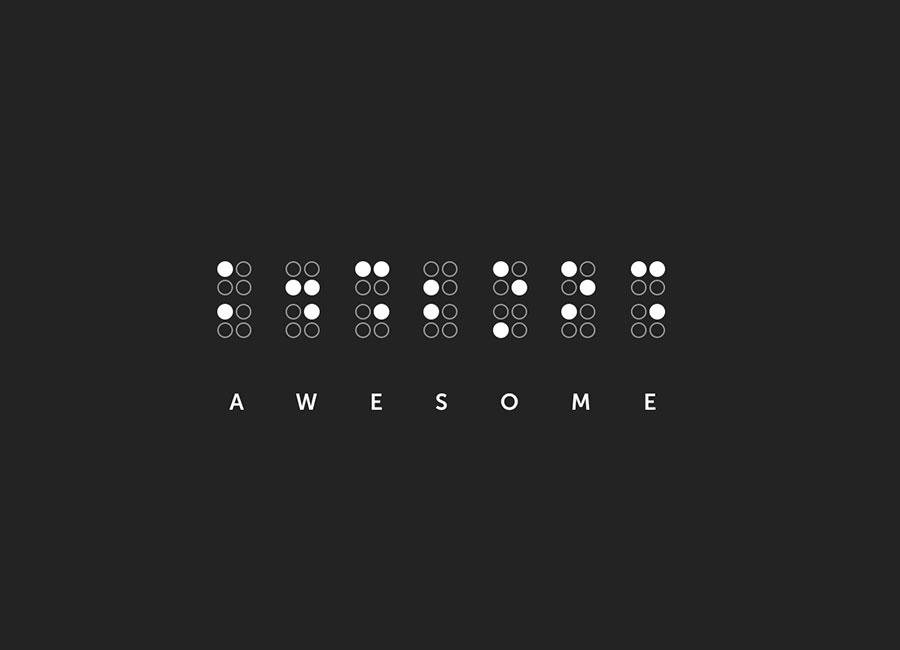

Communications Systems

Feb 5, 2018 · Sohaj Singh Brar

Readings

Create sketch notes or a concept map of Bonsiepe’s key ideas and models.

Communication device

Design + build a device, capable of sending and receiving messages at a distance. (For the purpose of the class, the distance will be 10 feet.).

Design a new code that can transmit any English text message. Consider ways to ensure messages are accurately received. (You cannot use existing codes, such as Morse.)

How it works

The matrix has been designed in a way that anyone in the world can use this communication device to interpret the signal. As it’s rules translates into the “common language” of everyone.

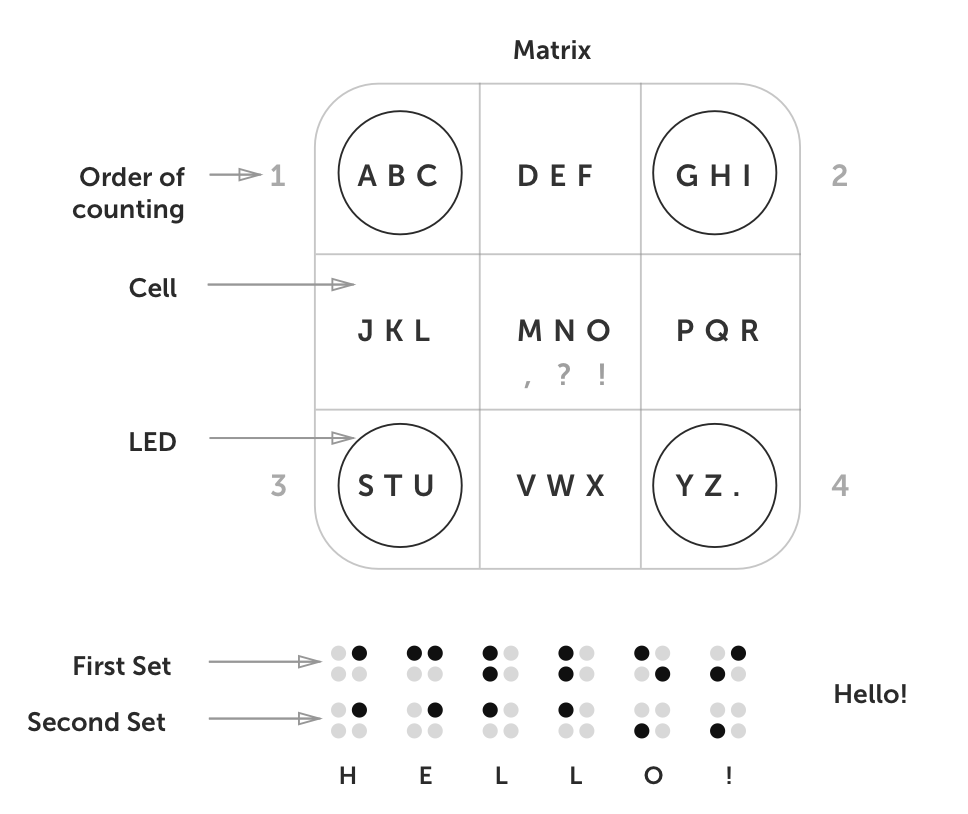

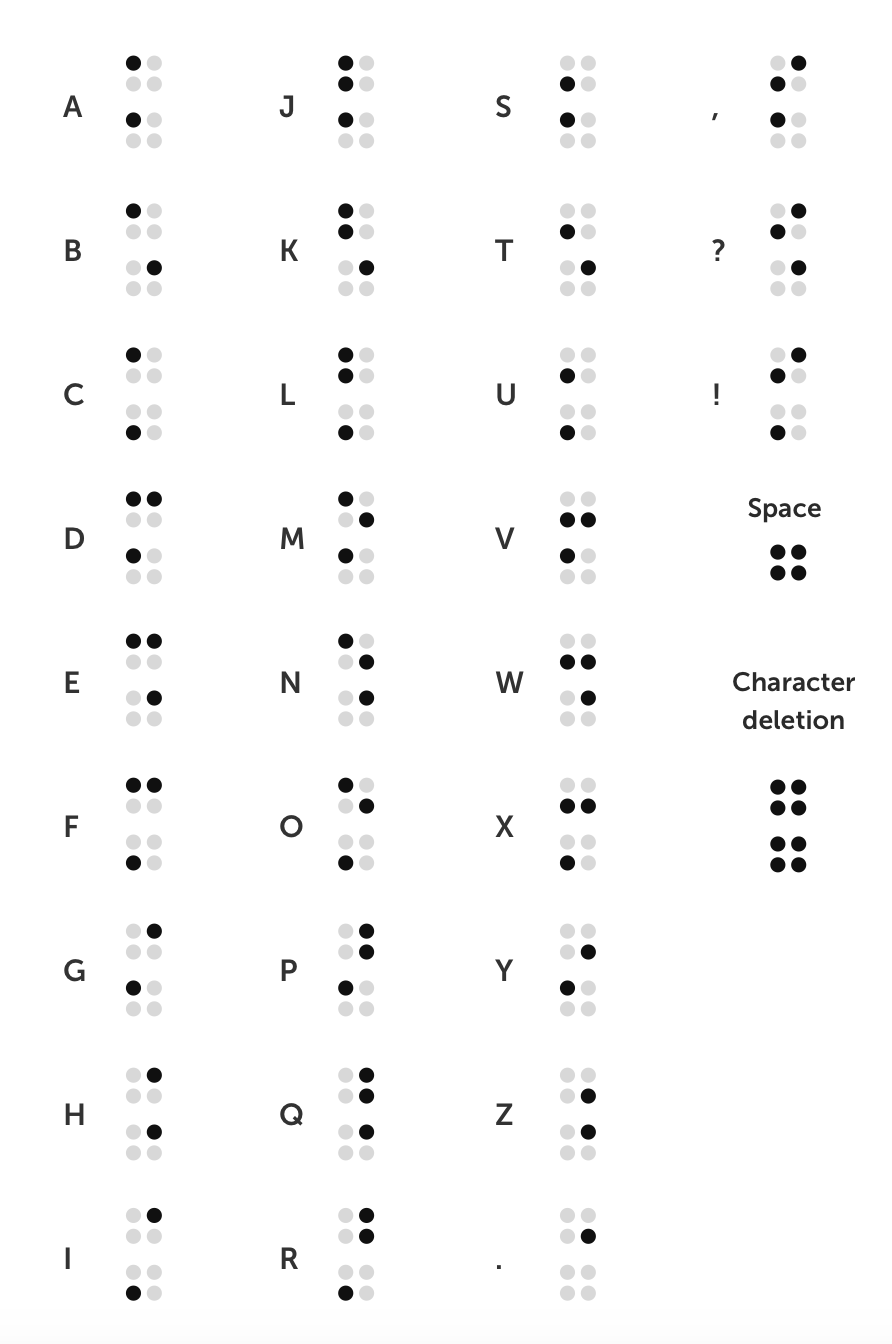

The matrix is formed with alphabets written from A to Z in the order. The alphabets are then divided into a set of three such that all alphabets become a part of 3x3x3 matrix containing 3^3 = 27 ( 26 alphabets + “.”) characters.

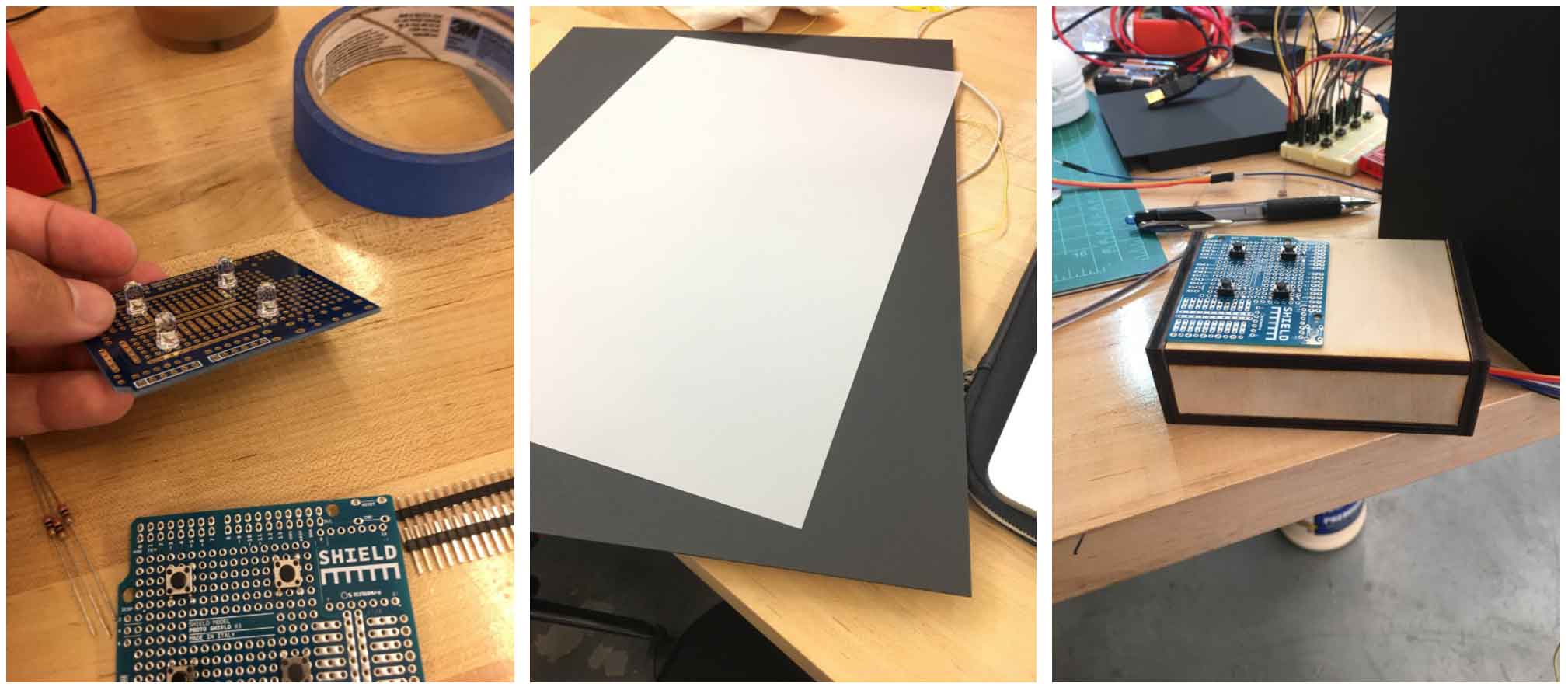

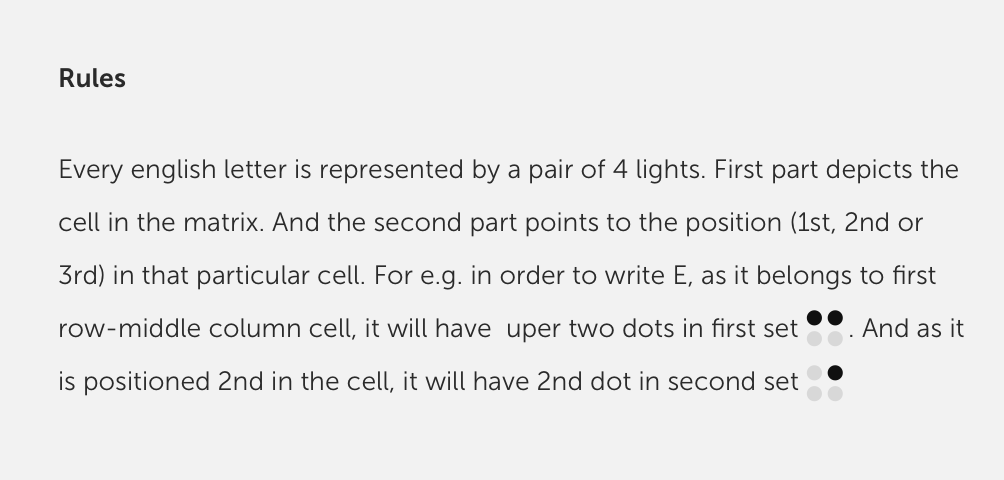

Every alphabet is formed out of two pairs of four lights. The first pair describes the in which cell does the alphabet lies. And second pair points to the position of the required alphabet in that cell. Therefore clearly reaching the exact alphabet without any complicated rules (like in Morse code)

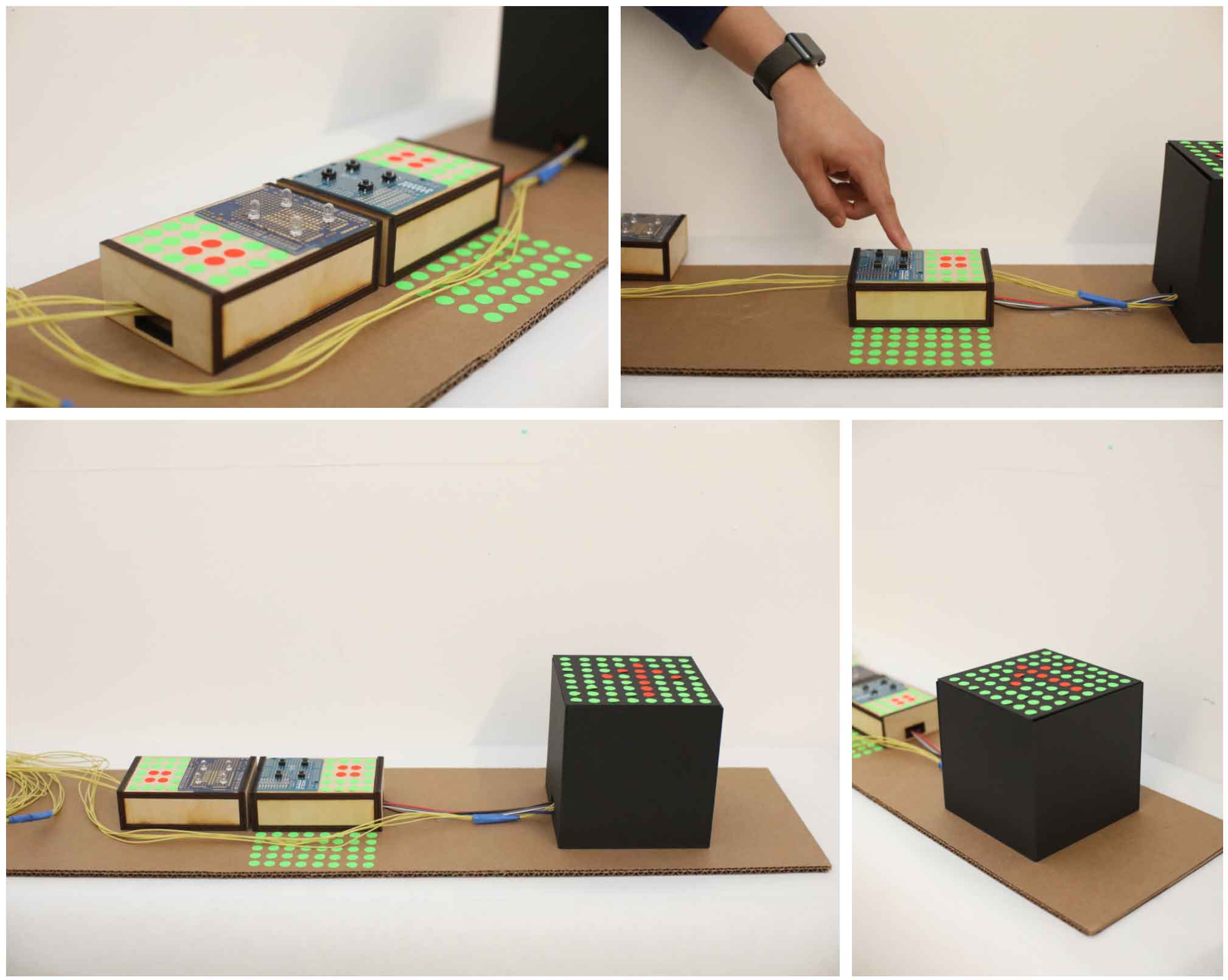

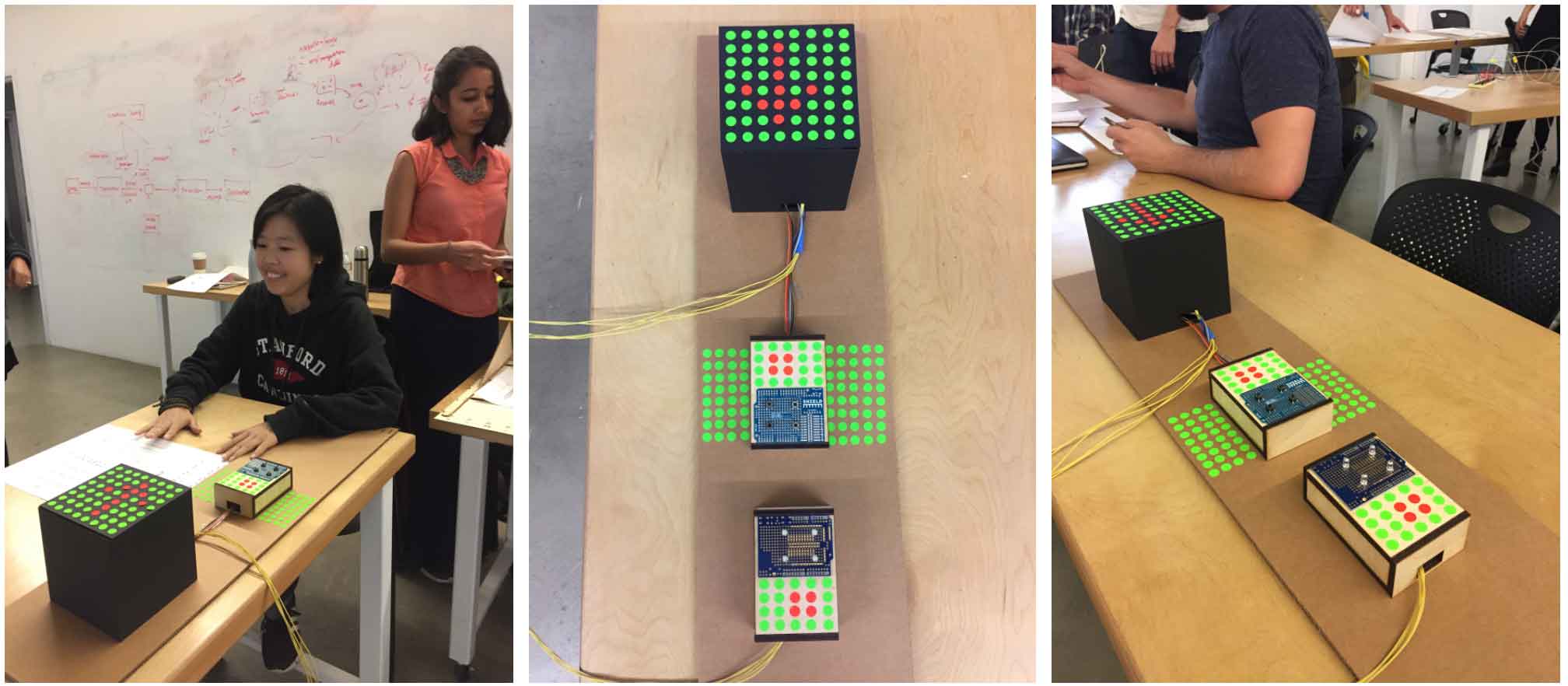

In action

Work in Progress

Message Transmission in Telegraph

Application Data Model

Feb 12, 2018 · Sohaj Singh Brar

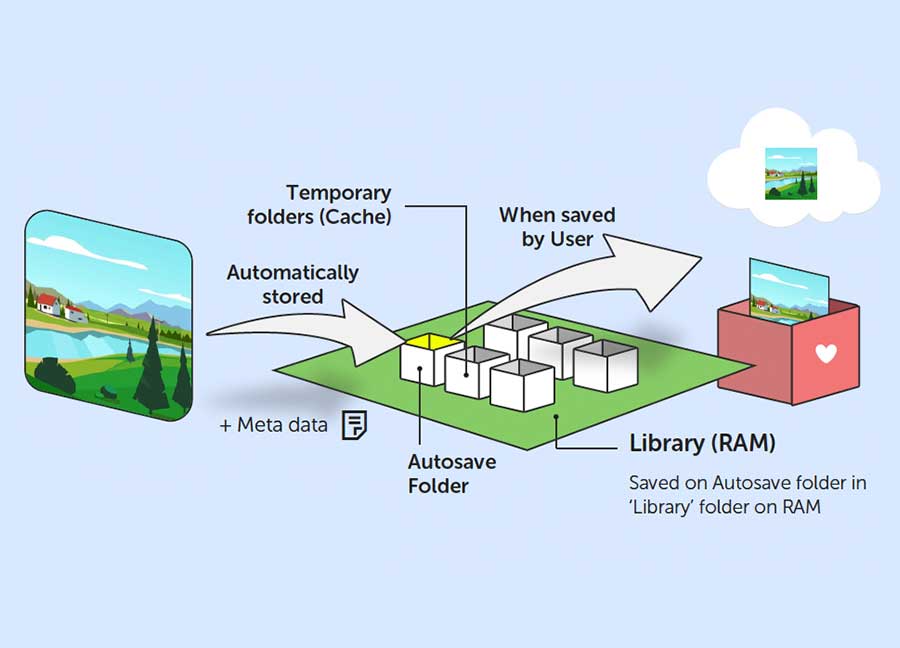

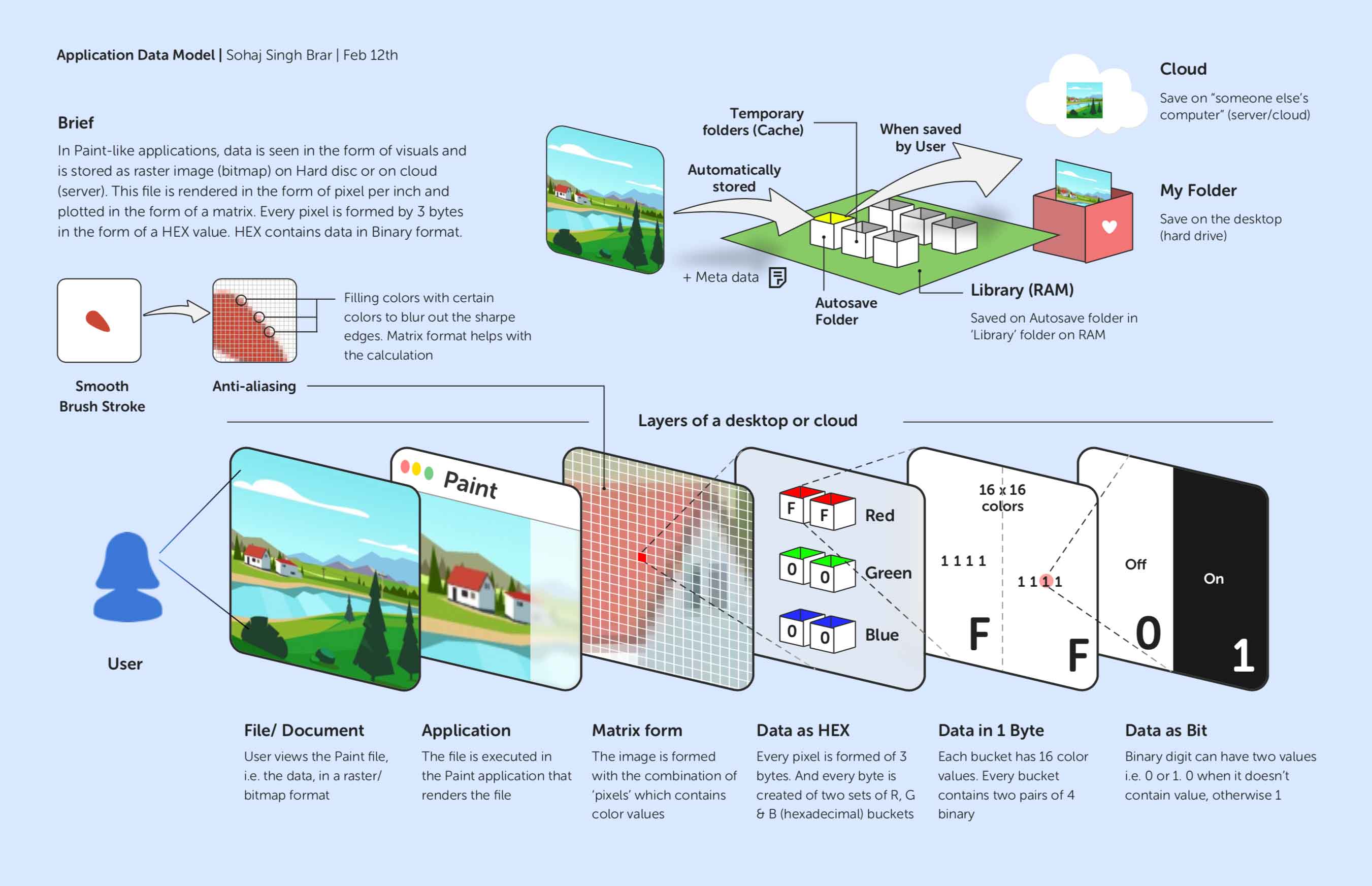

Create a diagram explaining how a desktop application “works”:
- How are the “data” stored? What is the “shape” of the data?
- What intermediary forms does the data take?
- What does the “user” see?
- What transformations link the stored data to what the user sees?

Grid Systems + CMS: Book

Feb 20, 2018 · Sohaj Singh Brar

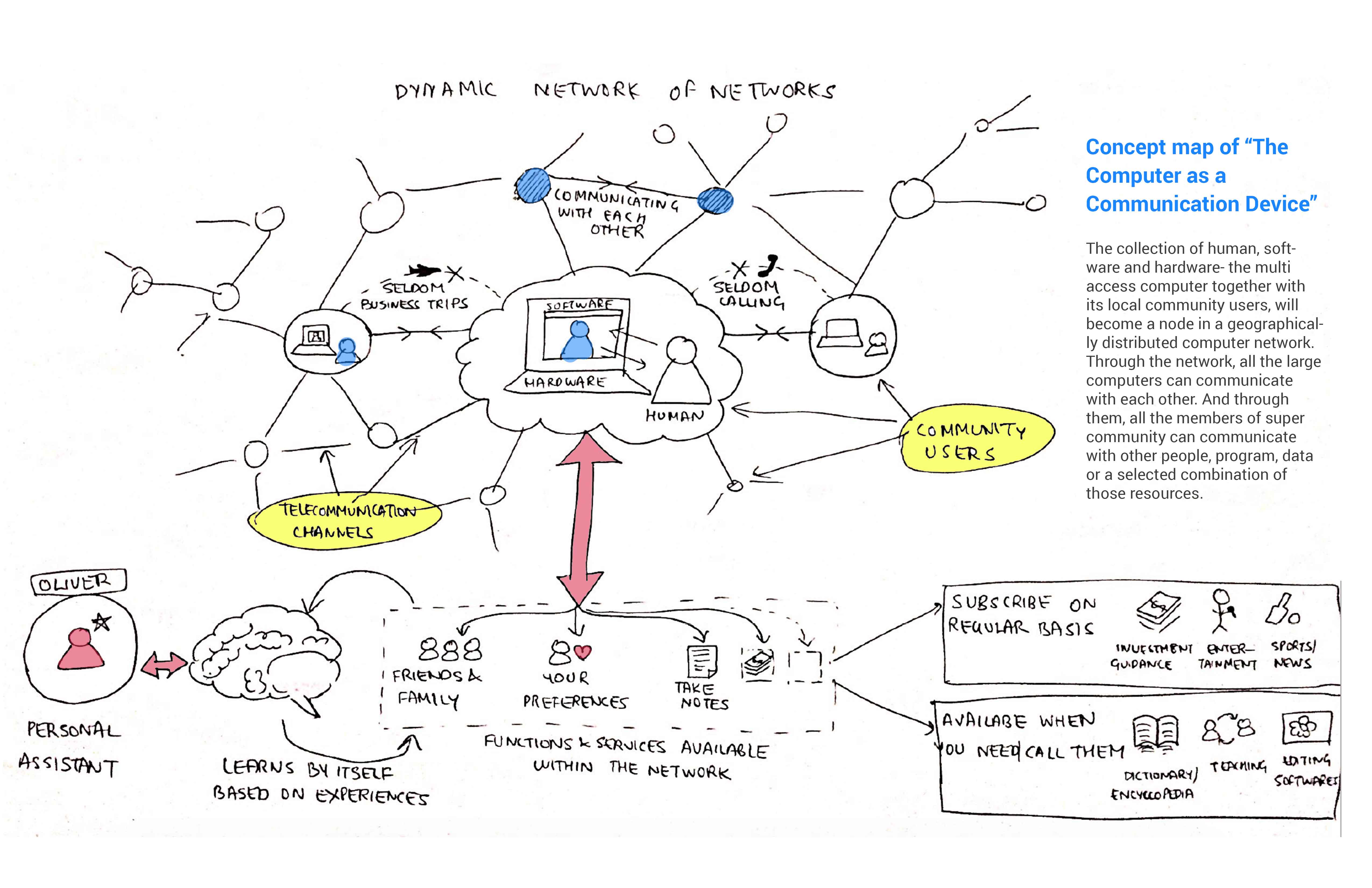

Licklider Reading notes

Assignment

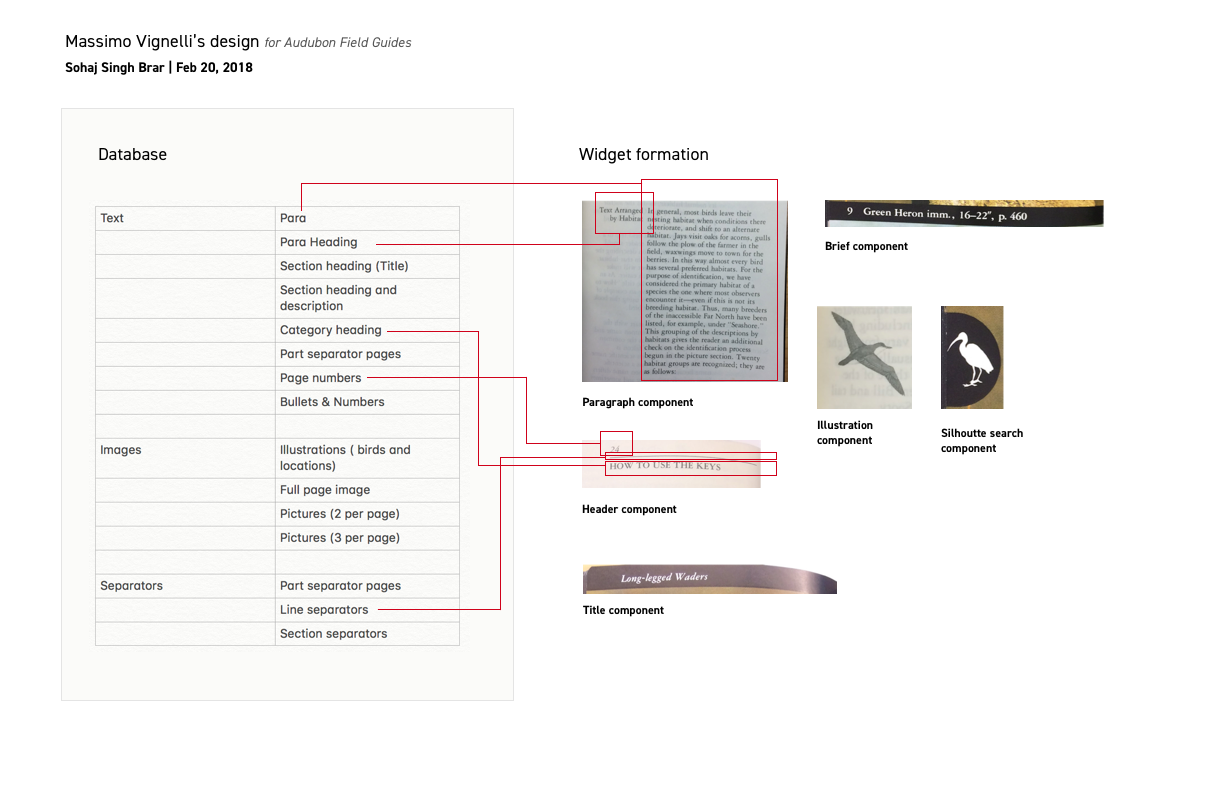

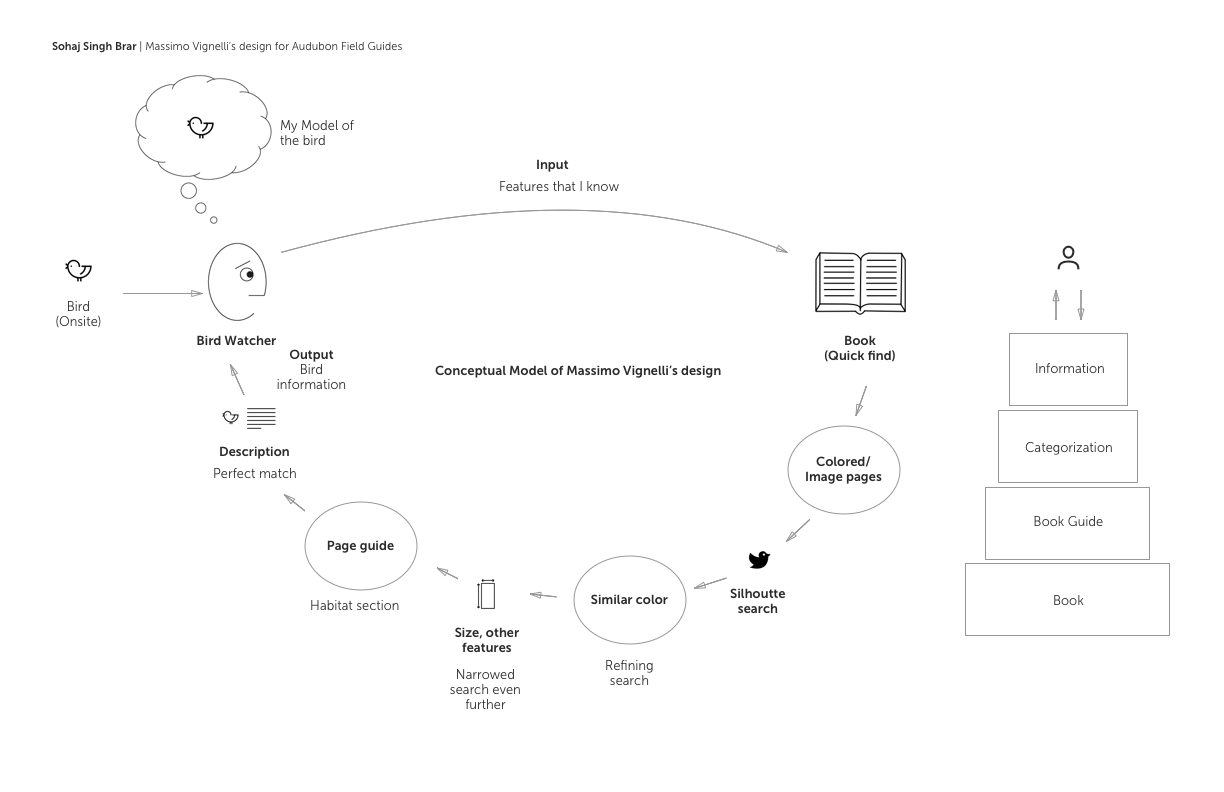

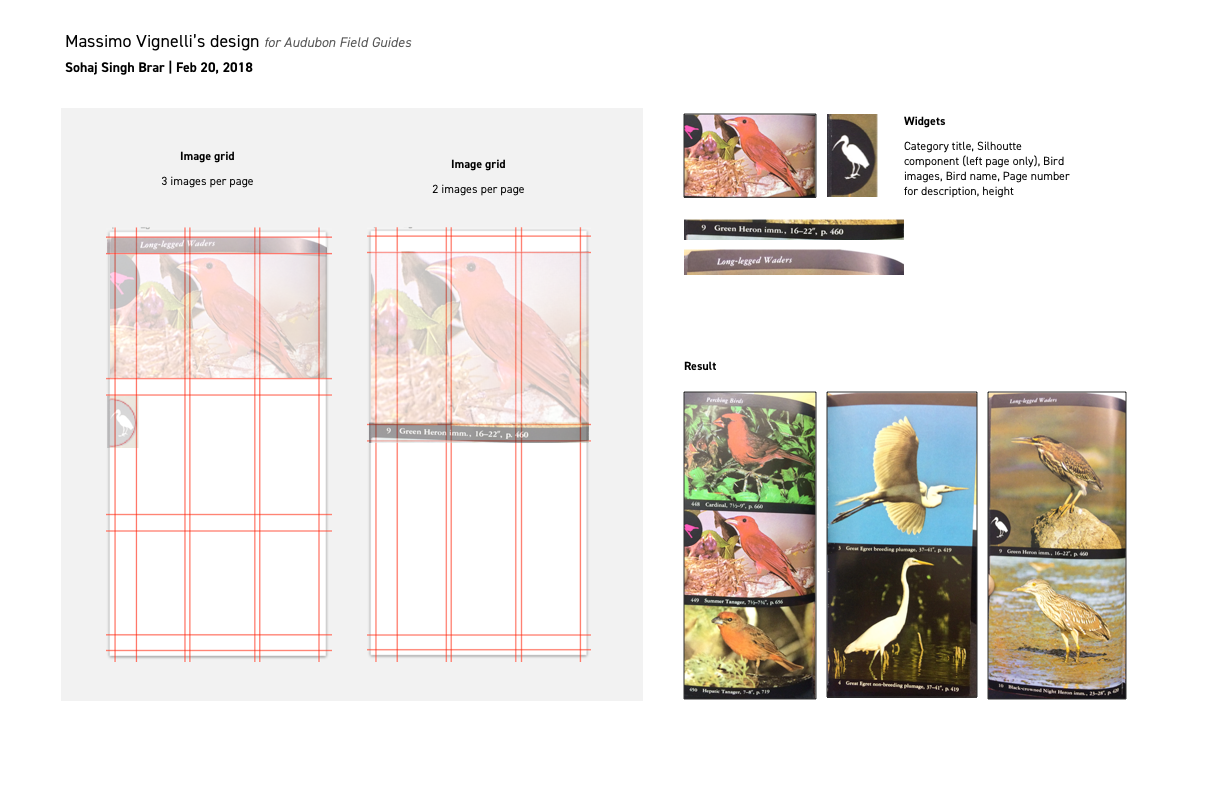

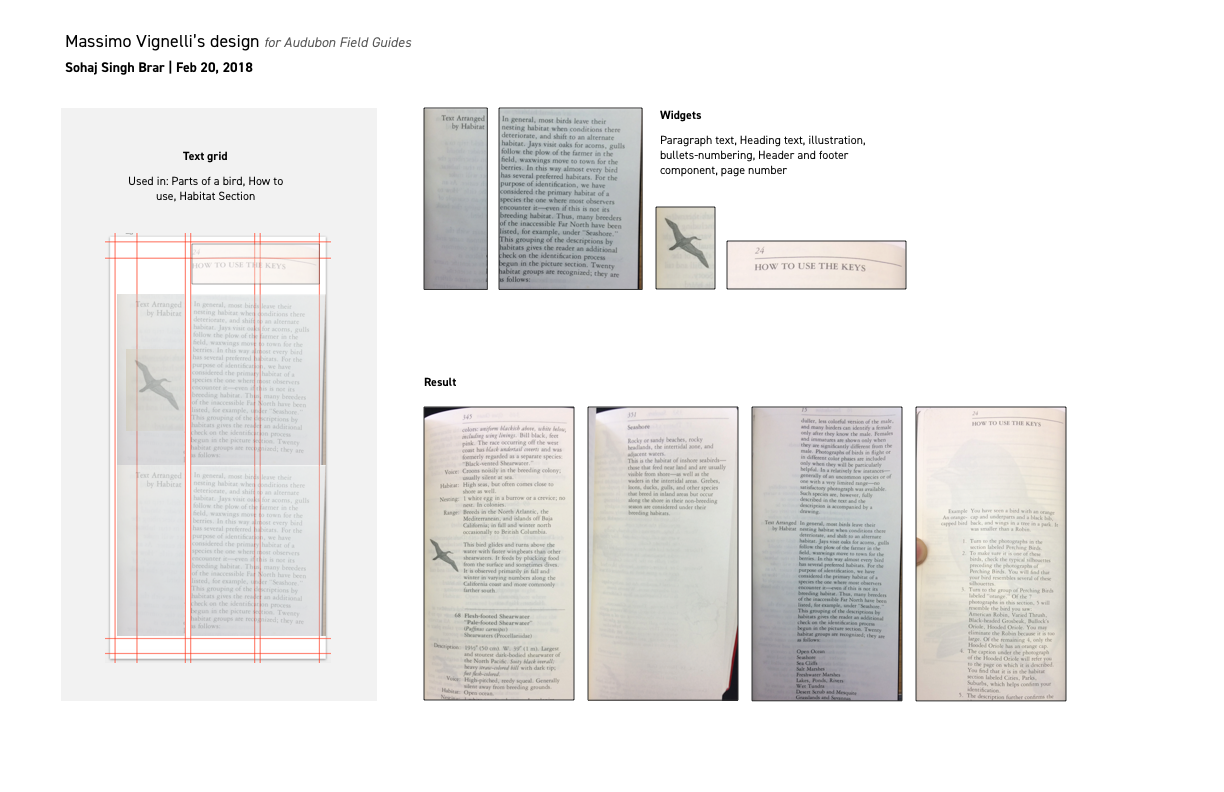

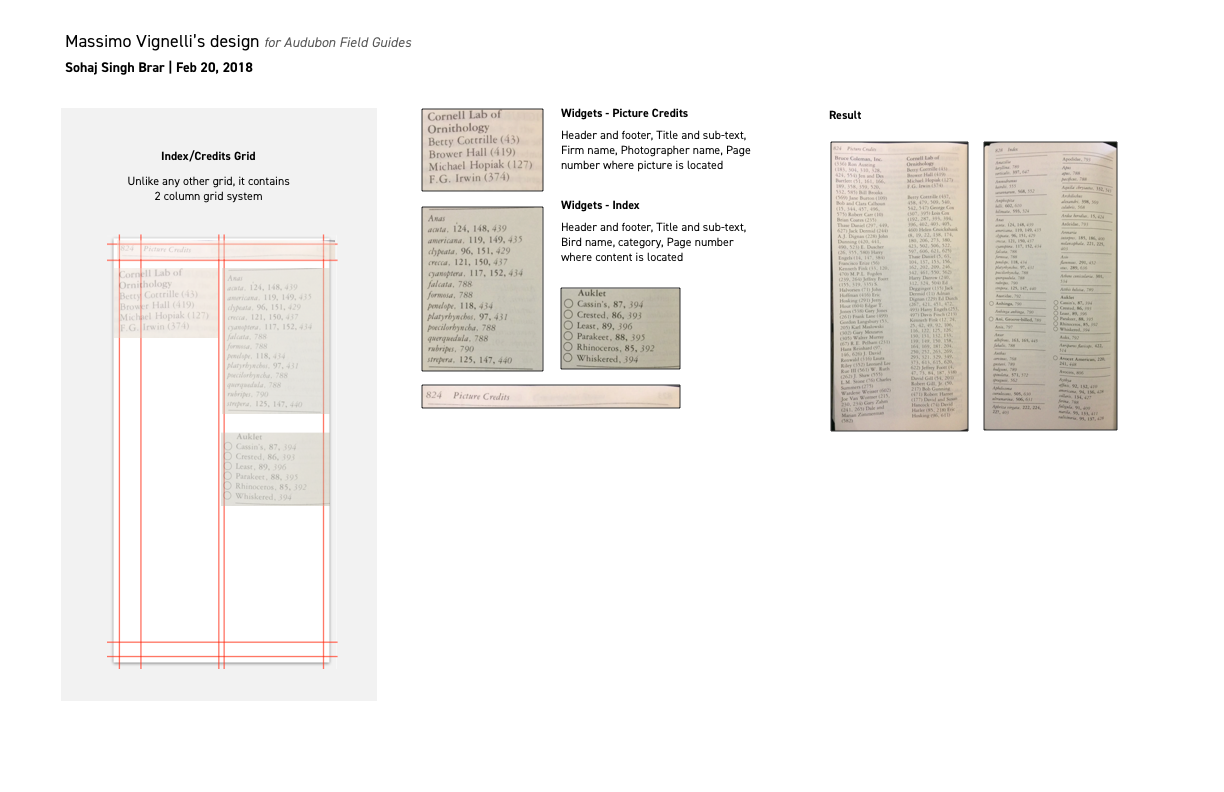

Deconstruct Massimo Vignelli’s design for the original Audubon Field Guides.
Make a diagram or “map” representing “the system” behind the guides.
- How many basic page types are there?

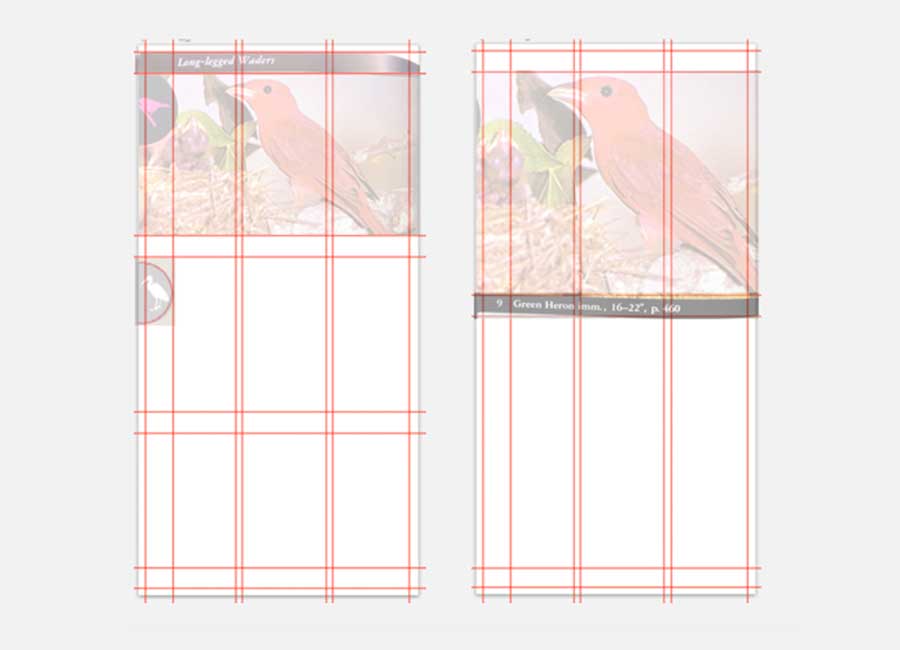

- What’s the “grid” for each page type?
- What information appears on each page type? (What connects all the pages?)
- What content “widgets” are repeated?
- How is each content widget constrained? (e.g., maximum size or length)
- What other elements are reused?

Grid Systems + CMS: Website

Feb 27, 2018 · Sohaj Singh Brar

Assignment

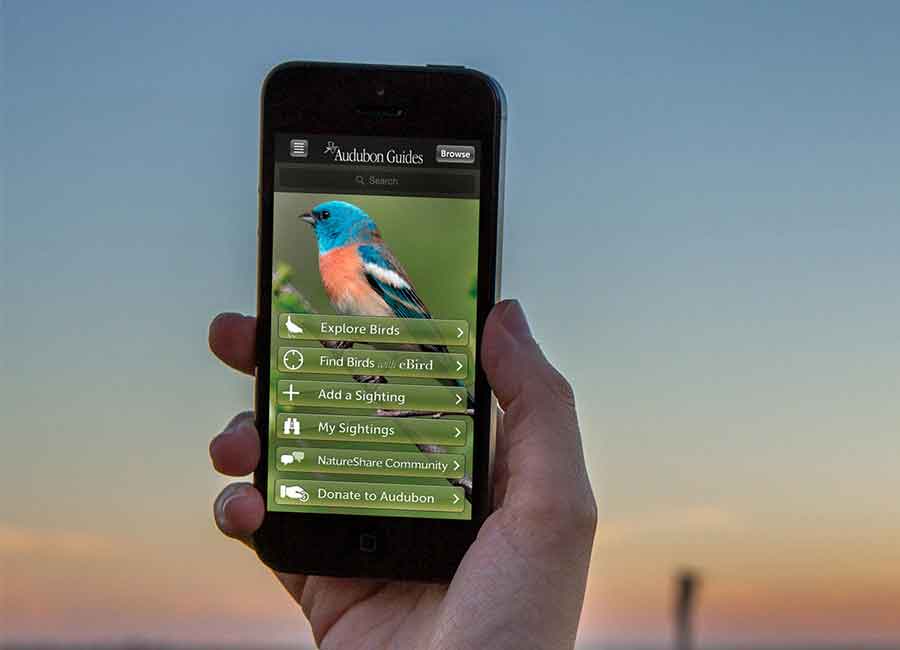

Capture the navigation + settings screens and one example of each template screen of Audubon Bird Guide App. Create a map, beginning with the home screen; link to connected screens and then to screens connected to them, and so on, so that the entire app is covered in the map.

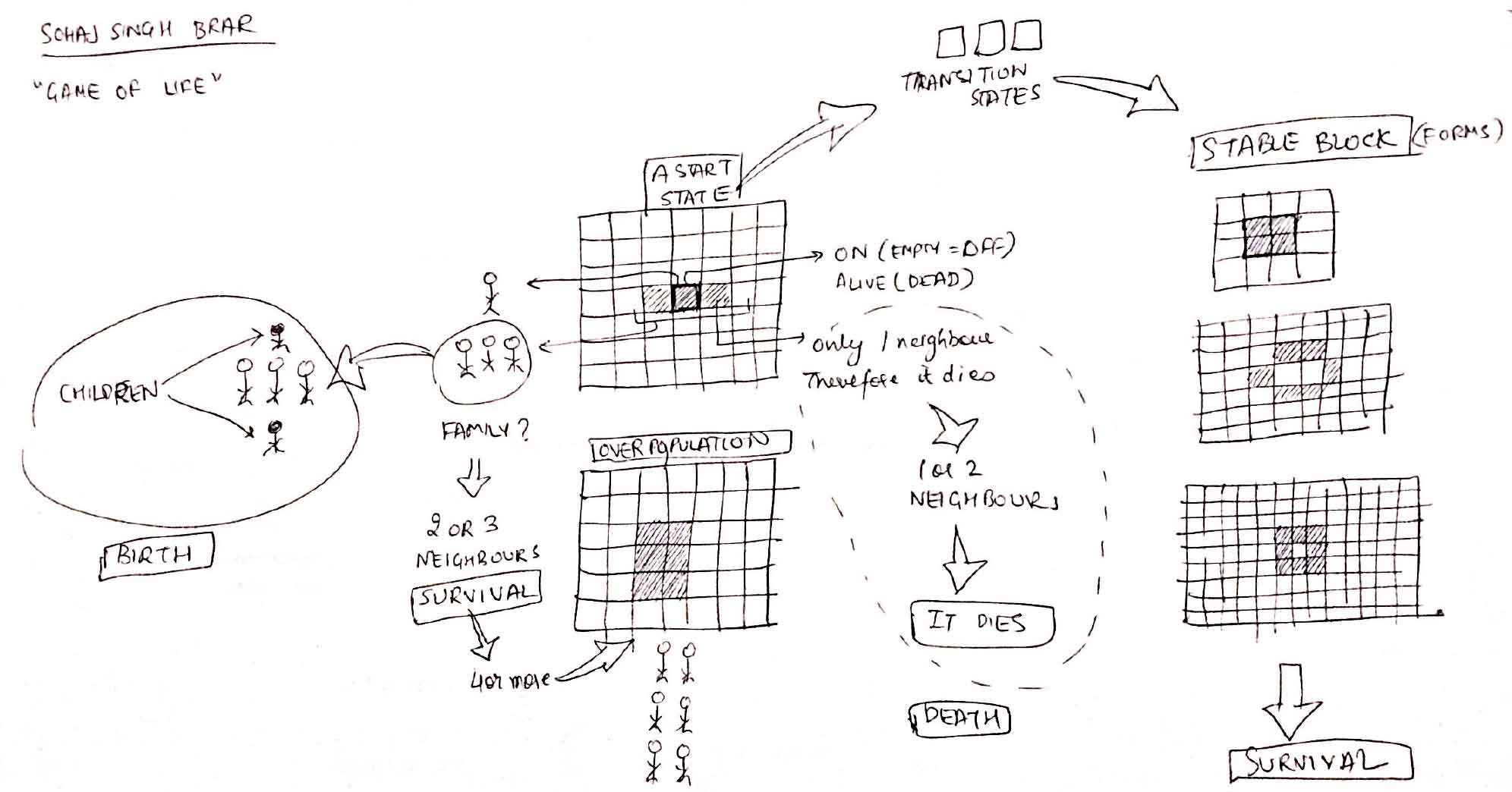

Game of Life

Information Structures

Mar 5, 2018 · Sohaj Singh Brar

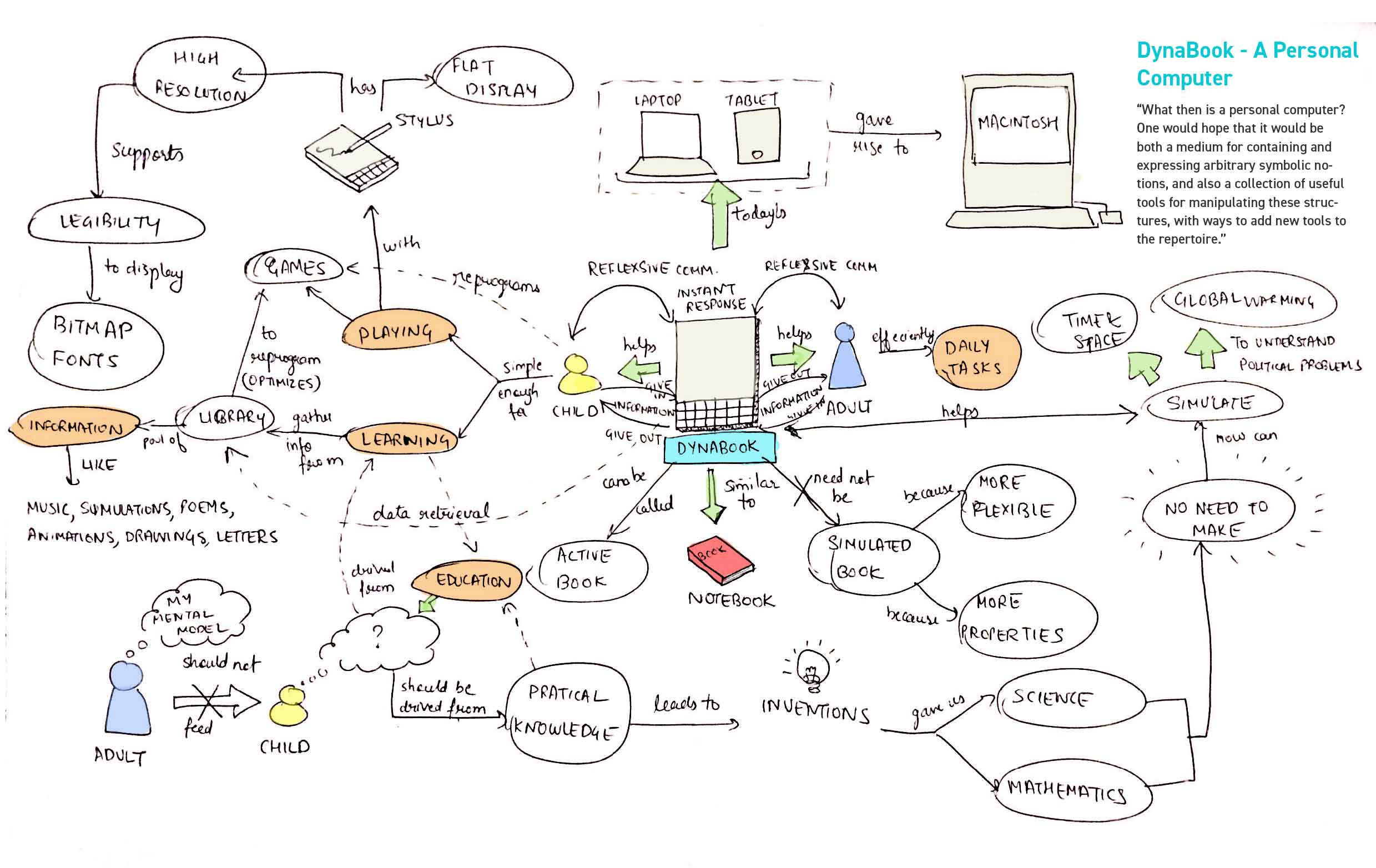

A Personal Computer for Children of All Ages

Assignment

Create Three Information maps:

Table or matrix, e.g., name-value pairs

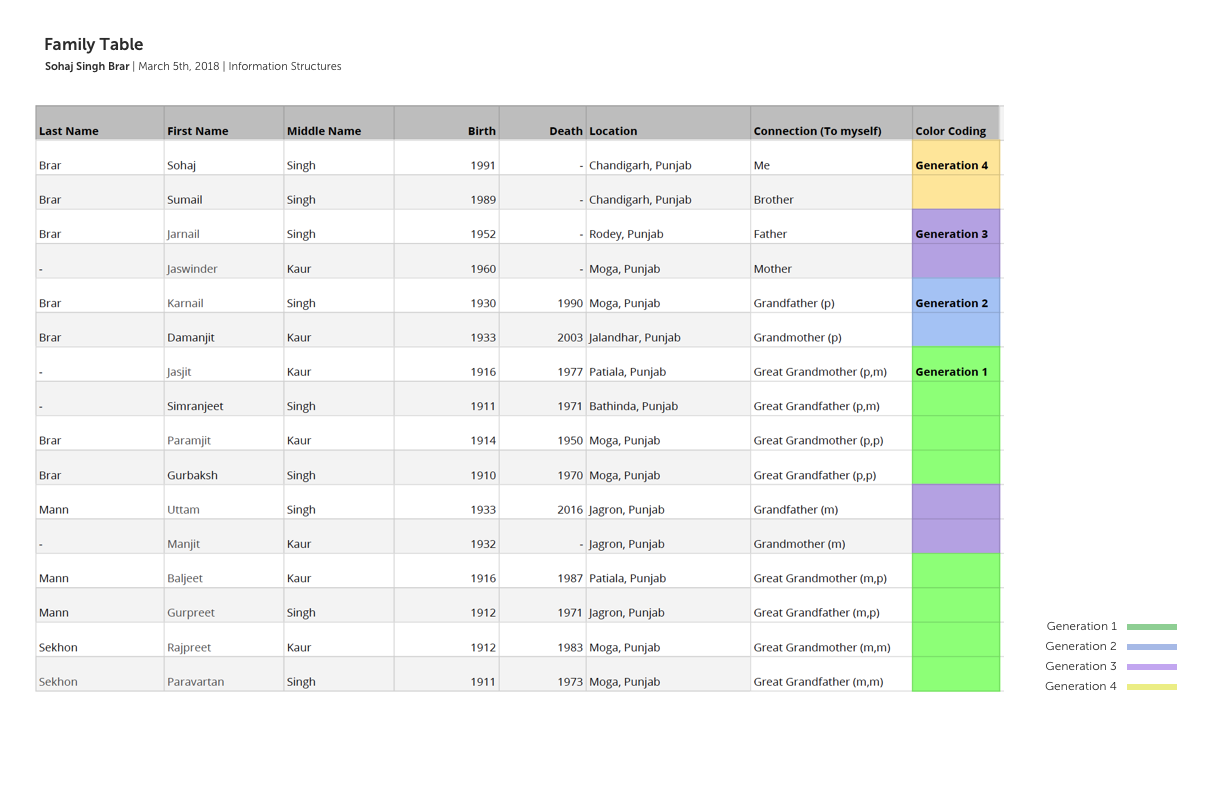

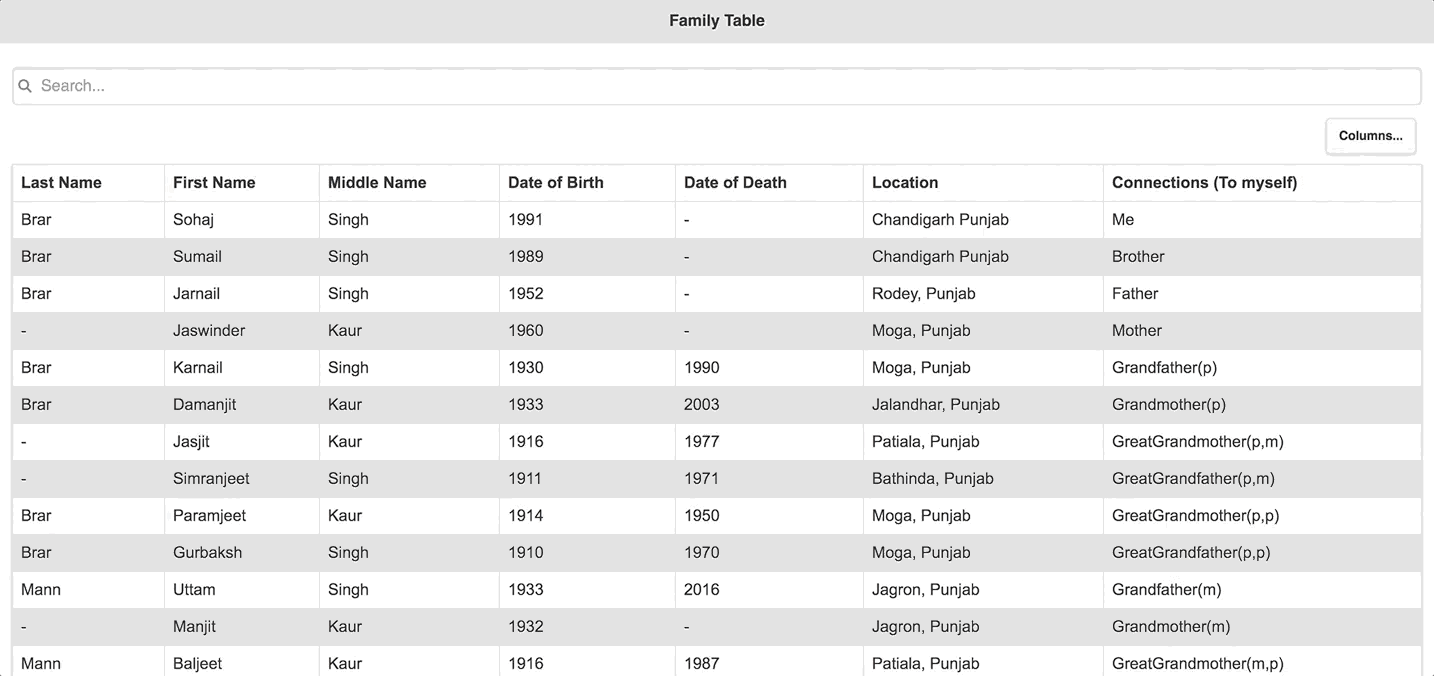

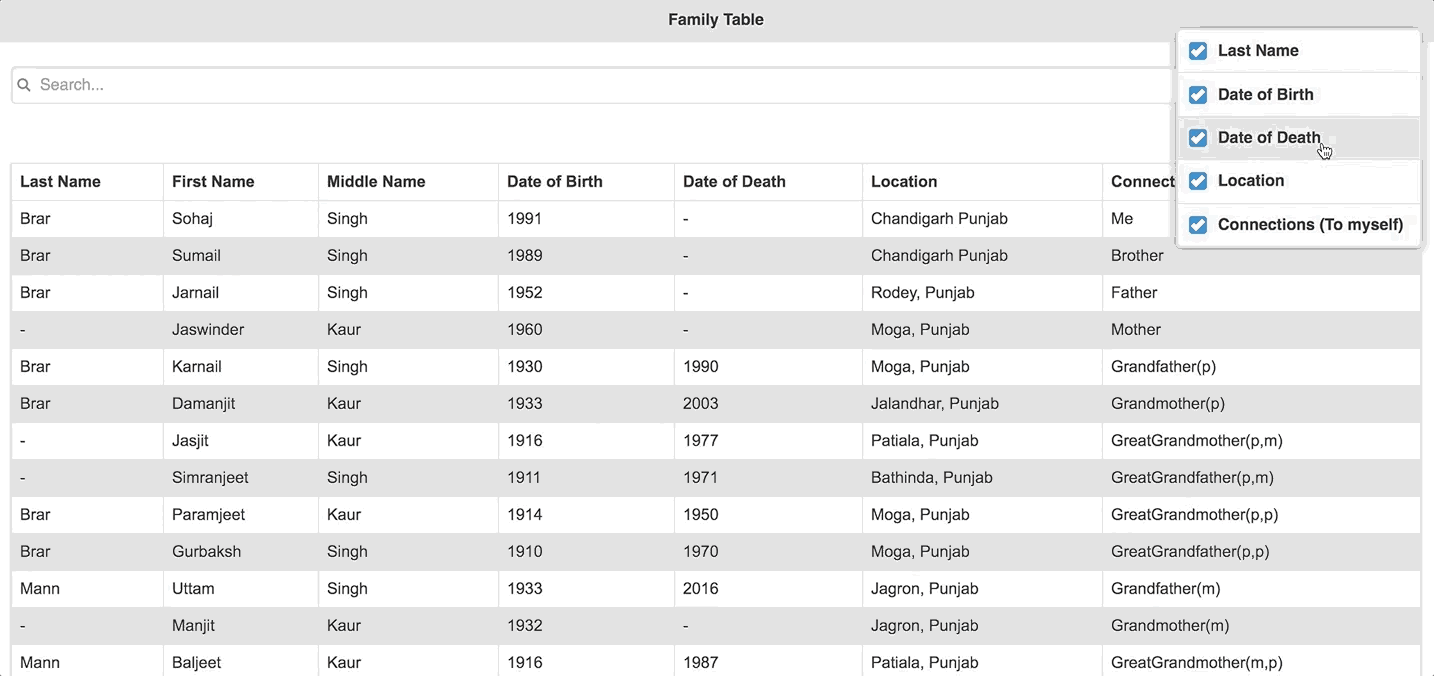

Create a list—a table with each person in your family history listed as a row. Go back to your great grandparents. (You may use any family tree.) Include columns for last name, first name, date of birth, death, location of main residence, pointer to a portrait. Include another column listing connections.

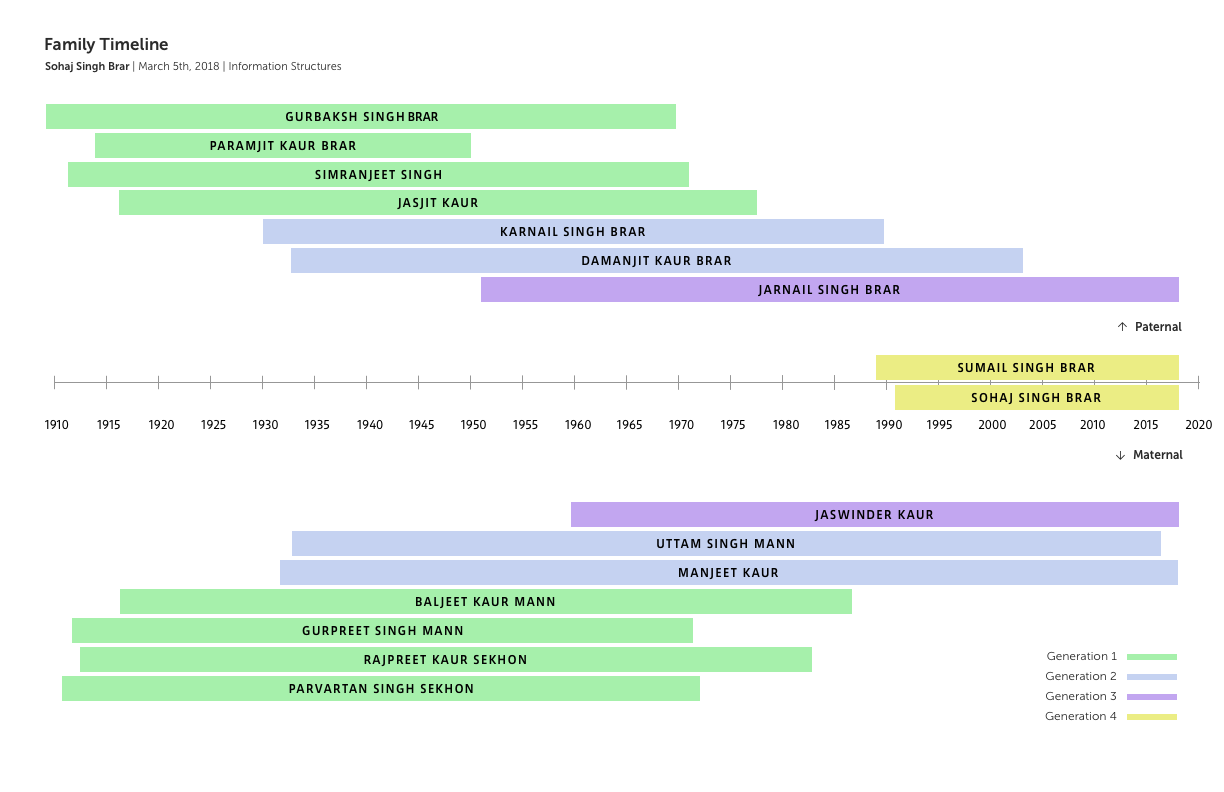

Sequence or array, e.g., a slideshow or timeline Create a timeline including all the members of your family tree. Include names and indicate the range of time during which they lived.

Tree or hierarchy, e.g., root-node-leaf or parent-child-sibling Create a diagram of your family tree, going back to your great grandparents. Include names, portraits, and dates of birth/death.

Information Structures - Interactive

Mar 12, 2018 · Sohaj Singh Brar

Assignment

Create an interactive information structure, based on your three maps.

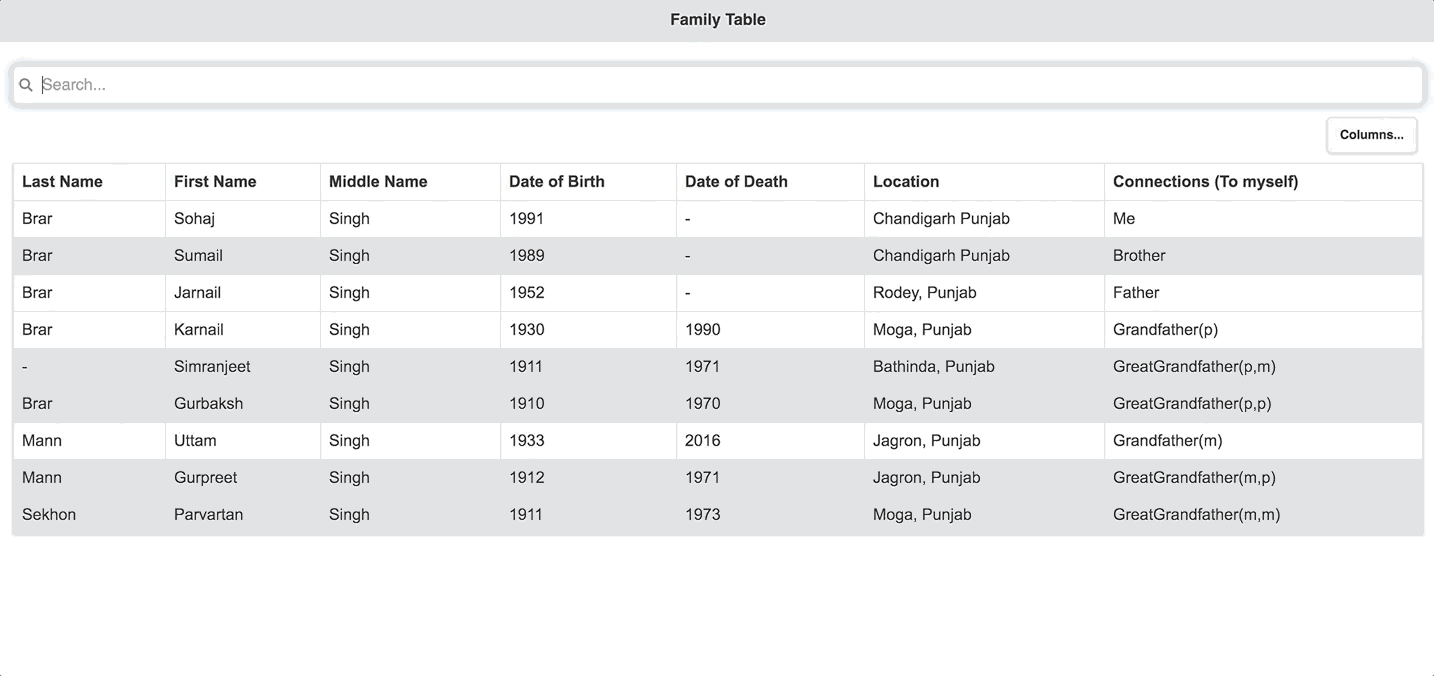

Make interactive versions of your list, timeline, and family tree.
Each person is a “node;” each “node” will be a “slide” or “card” or “page,”
and each link will be a “hyperlink.”

Methods used

I purposely used different methods for all three interactive elements for this assignment i.e. D3Js to build interactive family tree, FramerJS for Timeline and JQuery for Table. Using different methods of JS, unlike keynote/AE/principle etc. I learned how I can now apply any of these methods to build interactive systems that can be viewed/interacted anywhere in the world through webpages. Applying different JS techniques helped me learn which one is best suited for what purpose. And based on my expertise and the project type, I can choose the right tool in the future.

Family Tree

The tree has been designed in D3.js that runs on the website itself. User can navigate from that Family Tree to Family Table or Timeline.

Dynamic Systems: Modeling Stocks and Flows

Mar 26, 2018 · Sohaj Singh Brar

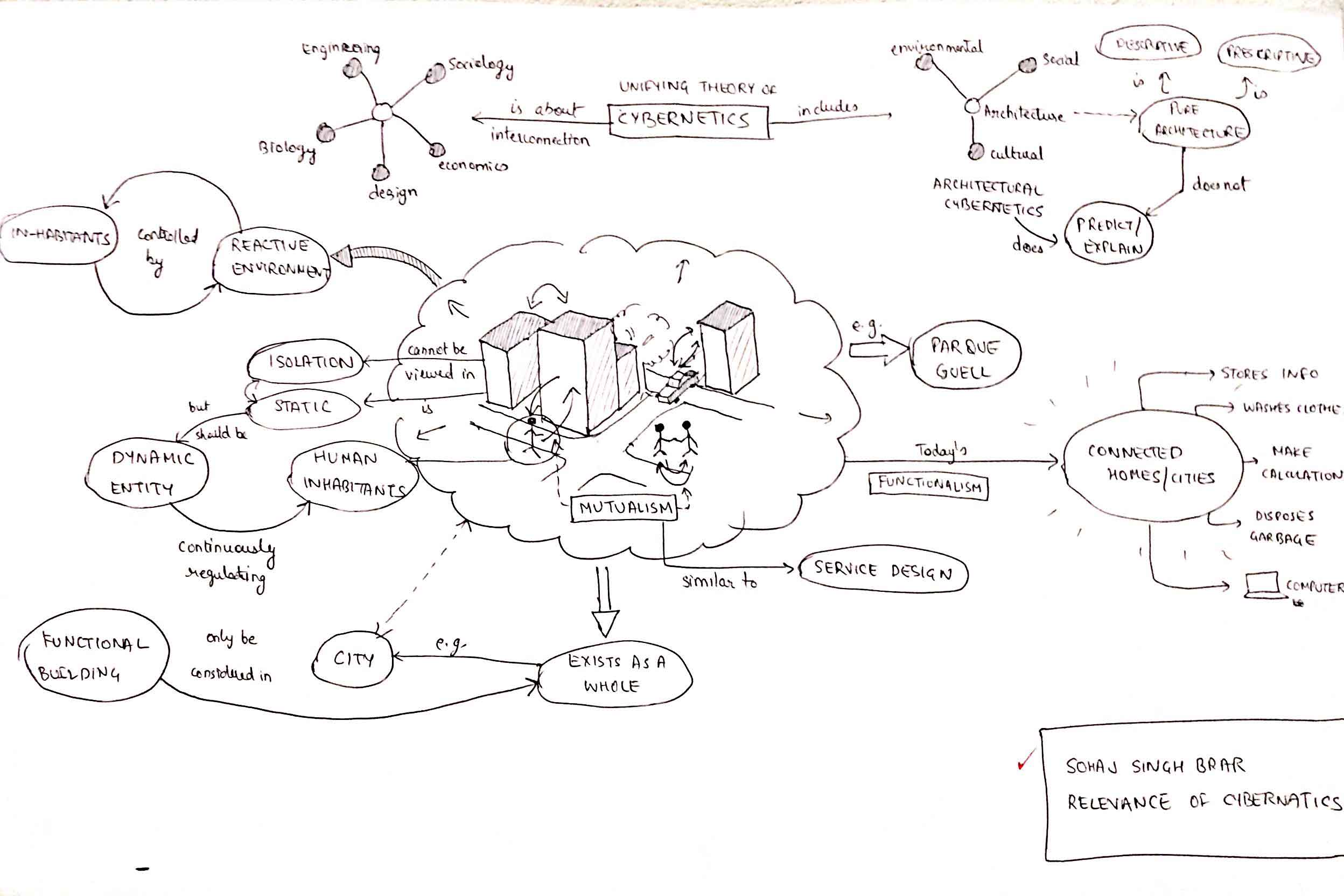

The Architectural Relevance of Cybernetics

Assignment

Create a diagram depicting a person in terms of at least six stocks.
Consider yourself in terms of stocks and flows, sources and sinks, and lag

Interactive Stocks and Flow

Click on inflow and outflow in the Framer prototype of Stocks & Flows below to interact with it

Stocks and Flow

Watch the video below that explains how interactive Stocks & flows work

Automatic Control Systems: Modeling Feedback

Apr 2, 2018 · Sohaj Singh Brar

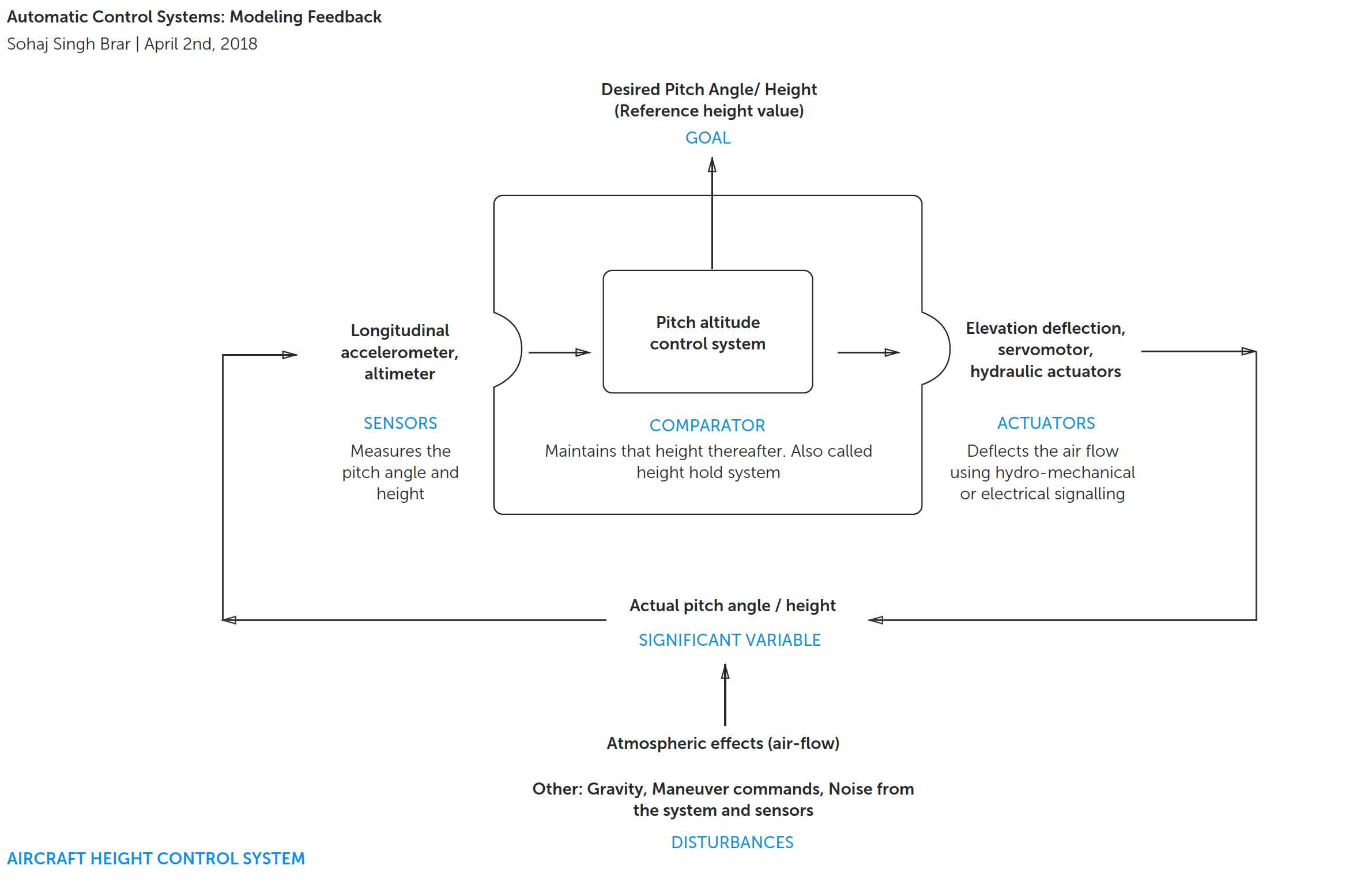

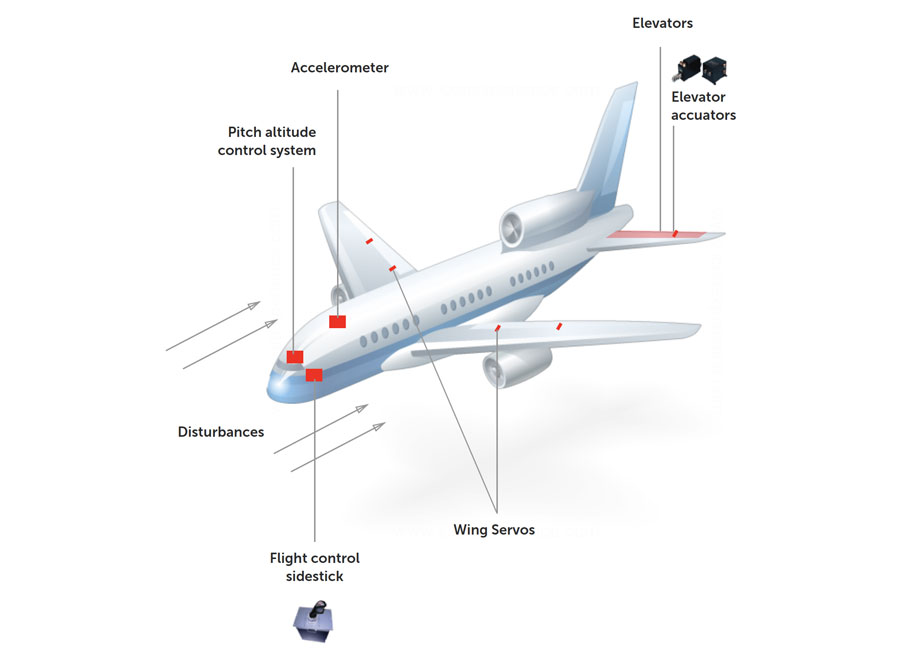

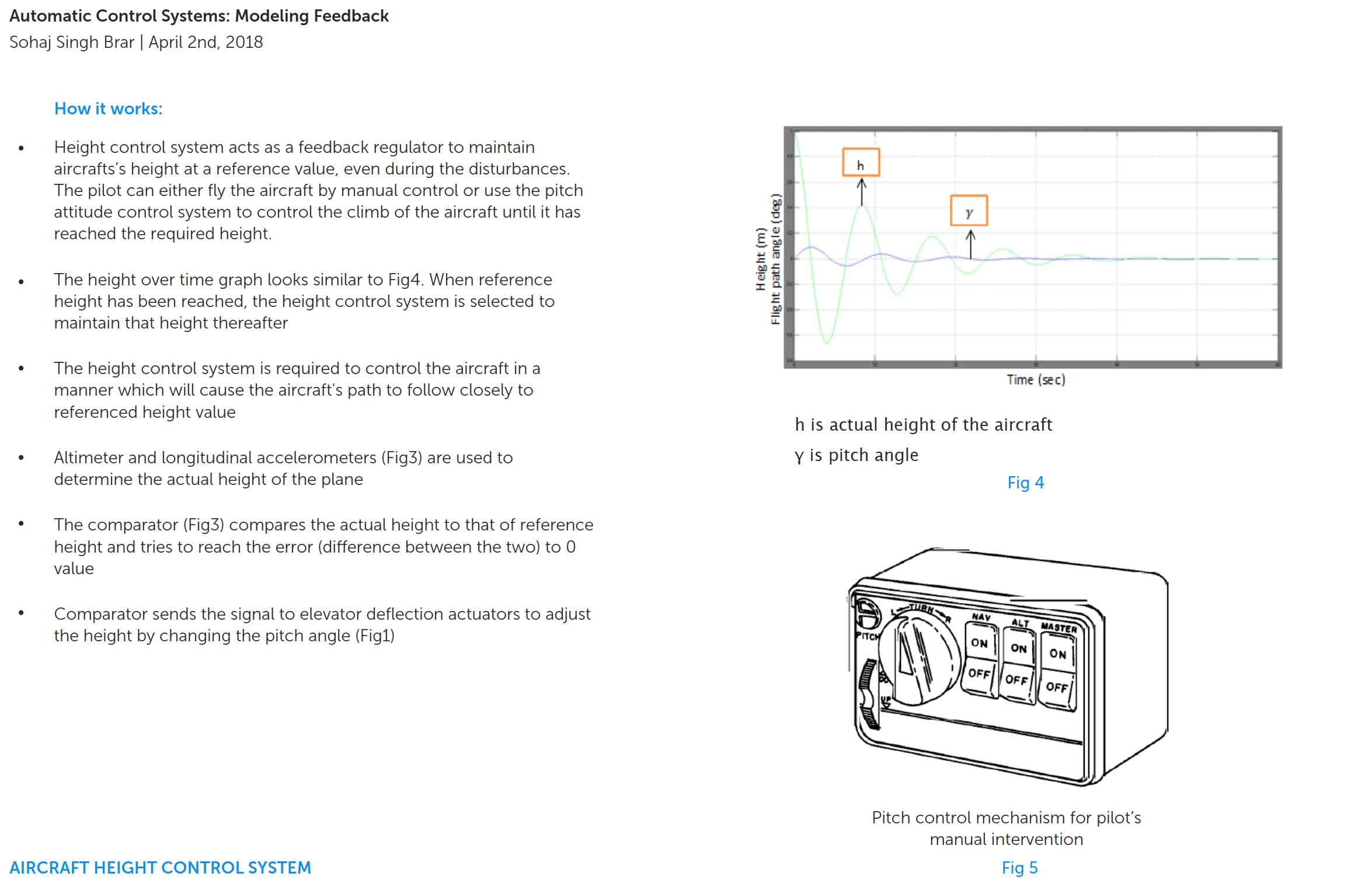

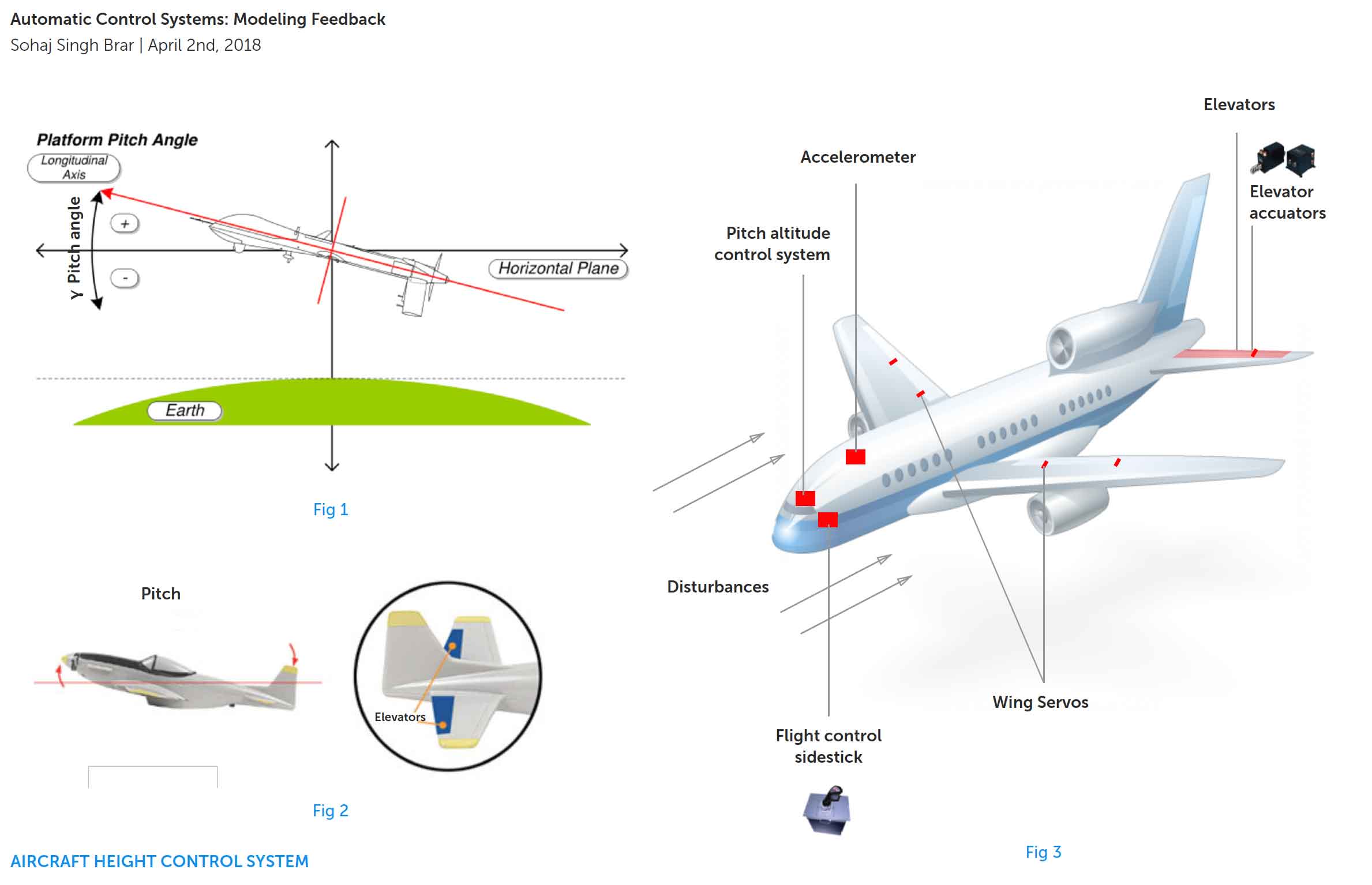

Assignment: Aircraft height control system

Identify a system that includes automatic feedback.
- The system should automatically close the feedback loop (without human input).
- Do not use a thermostat as your example.

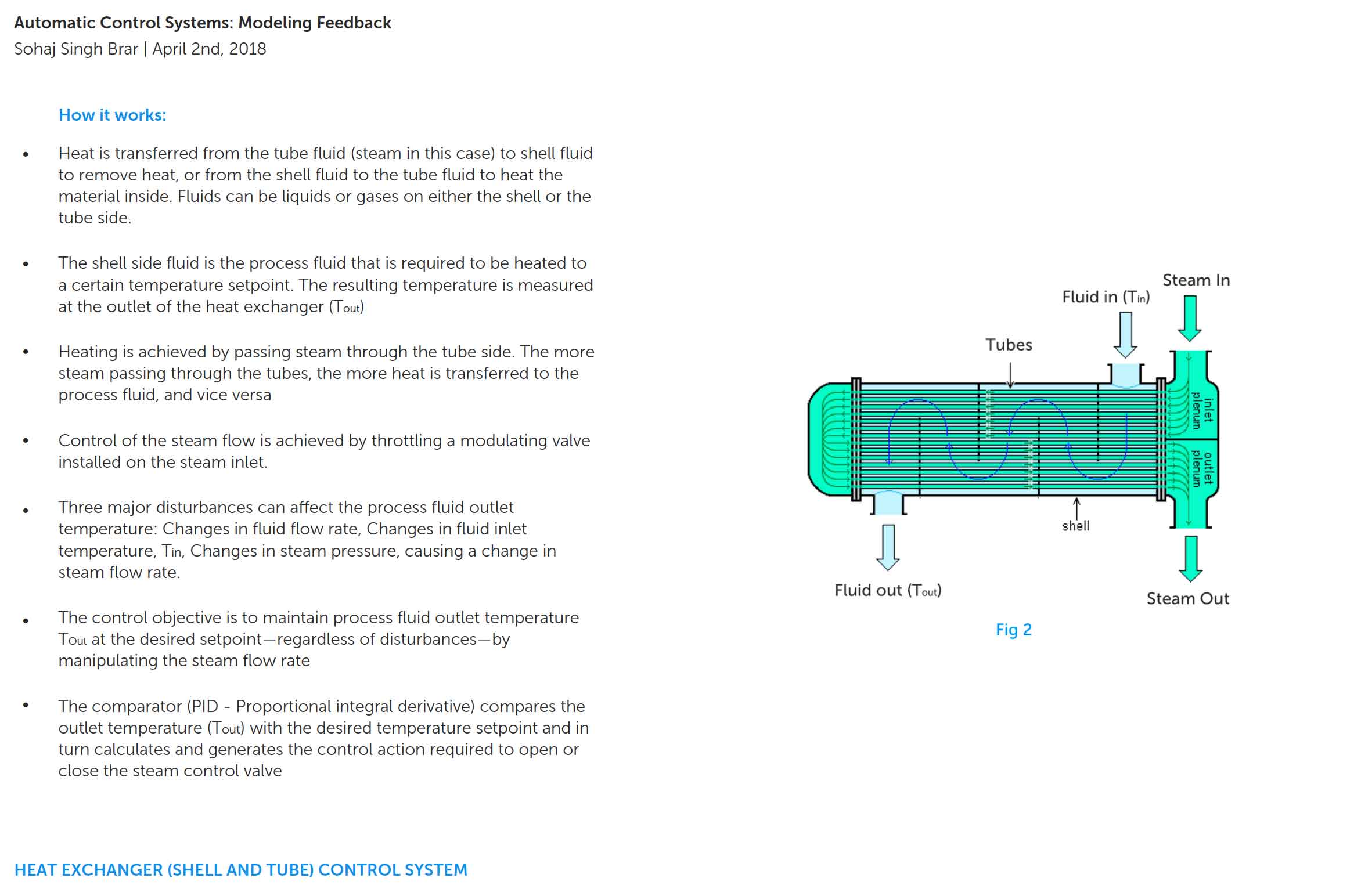

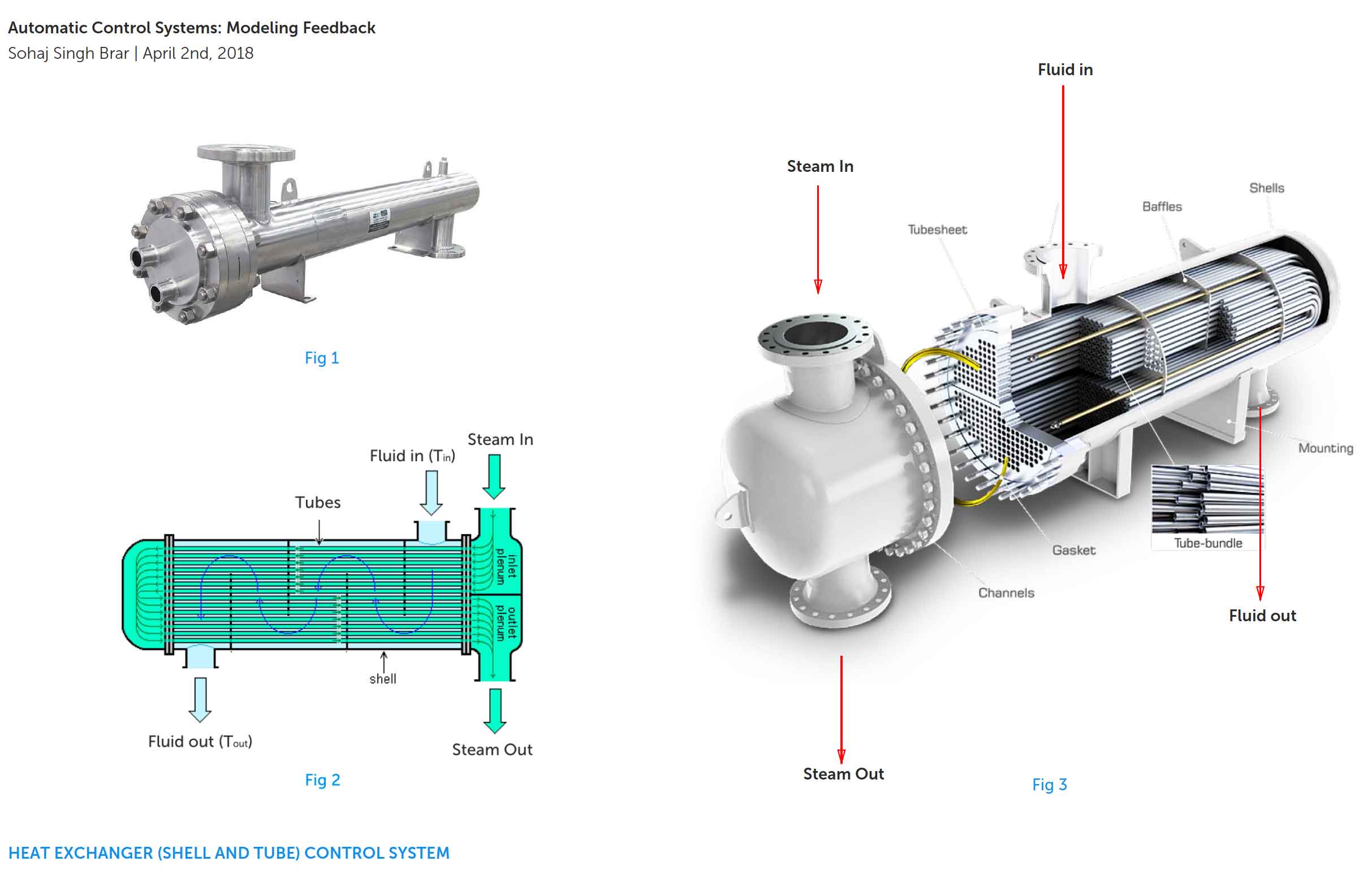

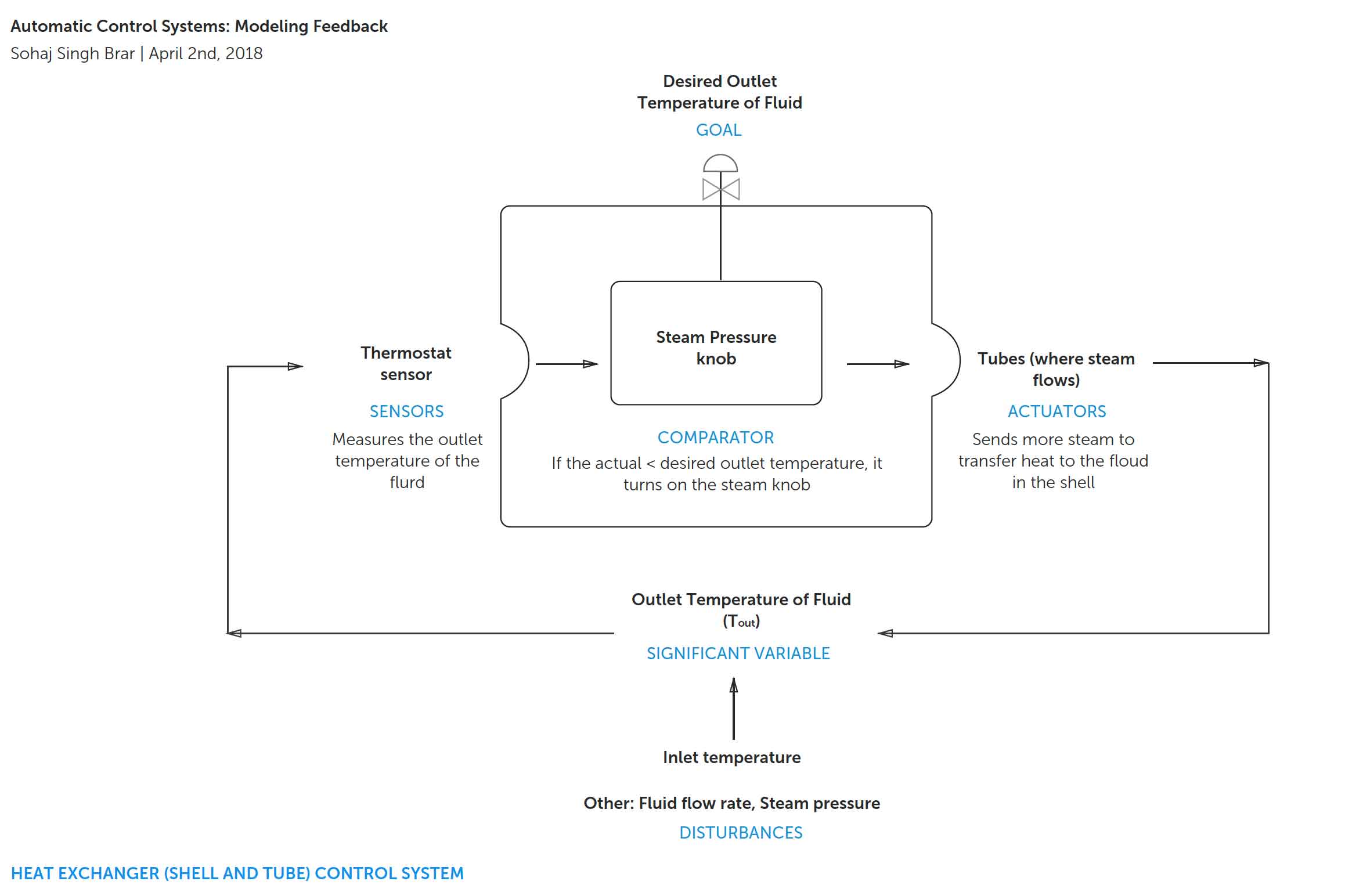

Heat Exchanger control system

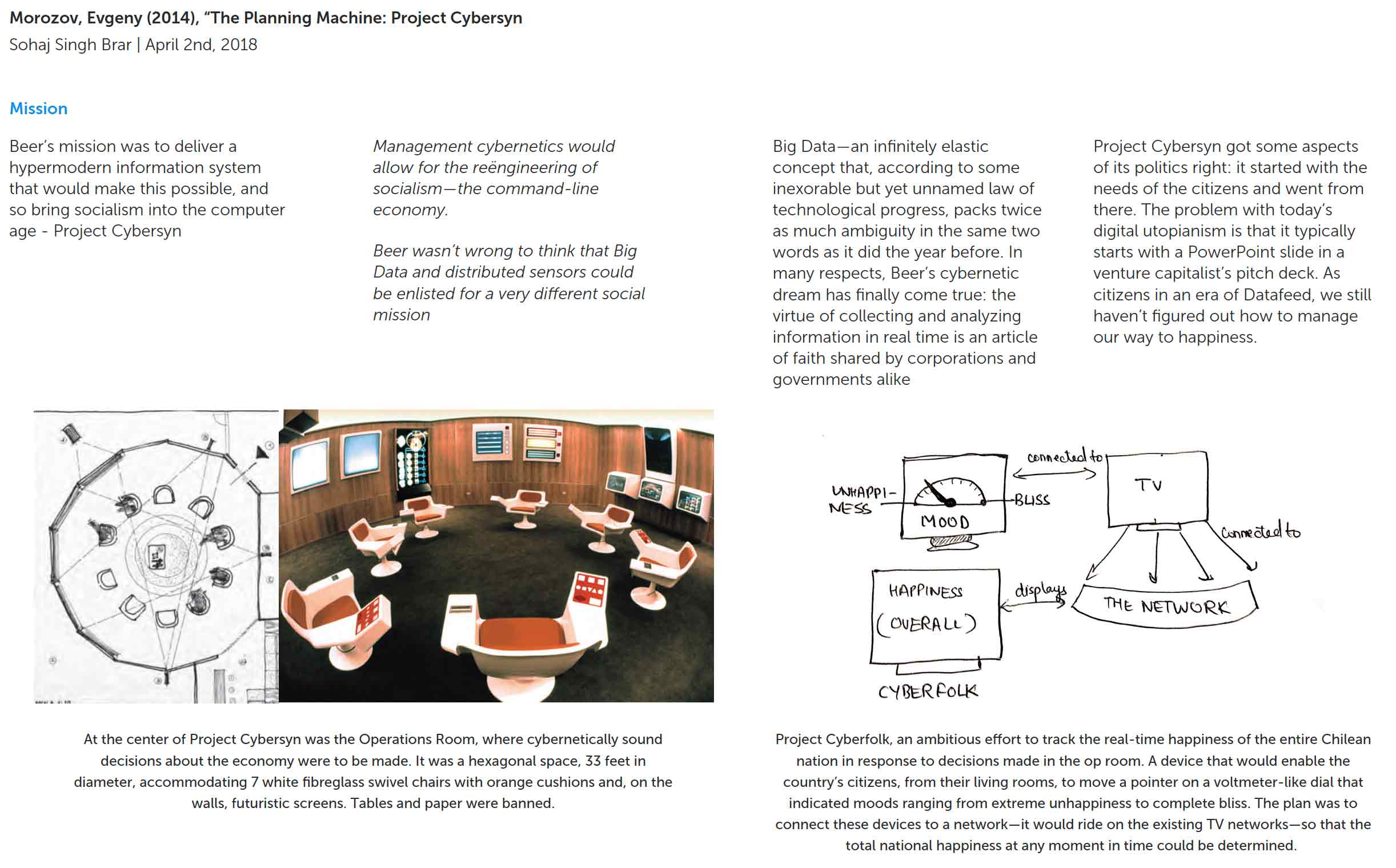

Reading: Morozov, Evgeny (2014), “The Planning Machine: Project Cybersyn”

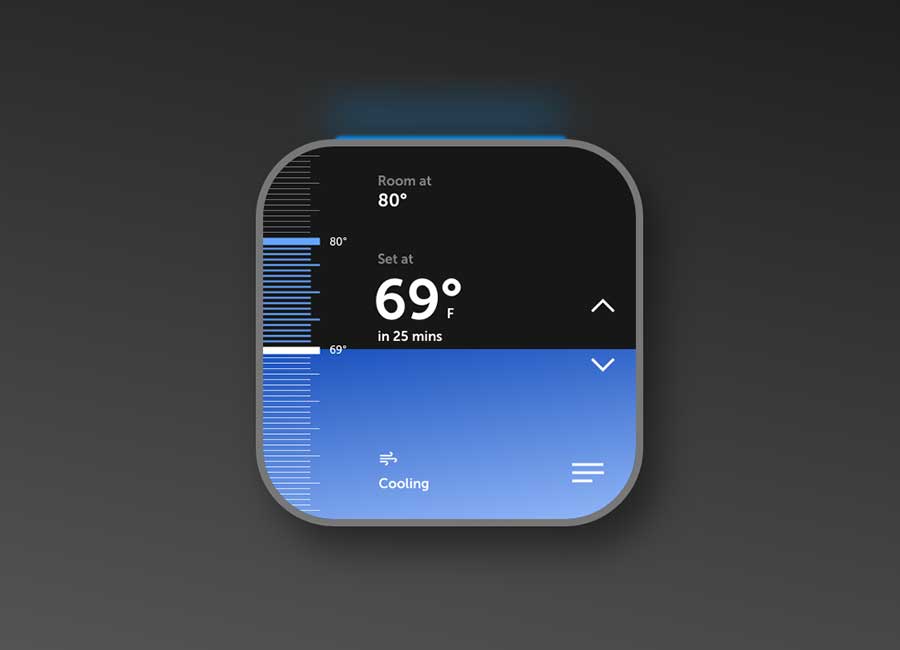

User Conceptual Models: Home Thermostat

Apr 2, 2018 · Sohaj Singh Brar

Assignment: Aircraft height control system

To begin, create a diagram of a home HVAC system
- What are the physical components of the system? (artifacts, stocks, + flows)
- What are the information elements of the system? (information + feedback)

Readings

Product-Service Ecology — Wellness

Apr 24, 2018 · Sohaj Singh Brar

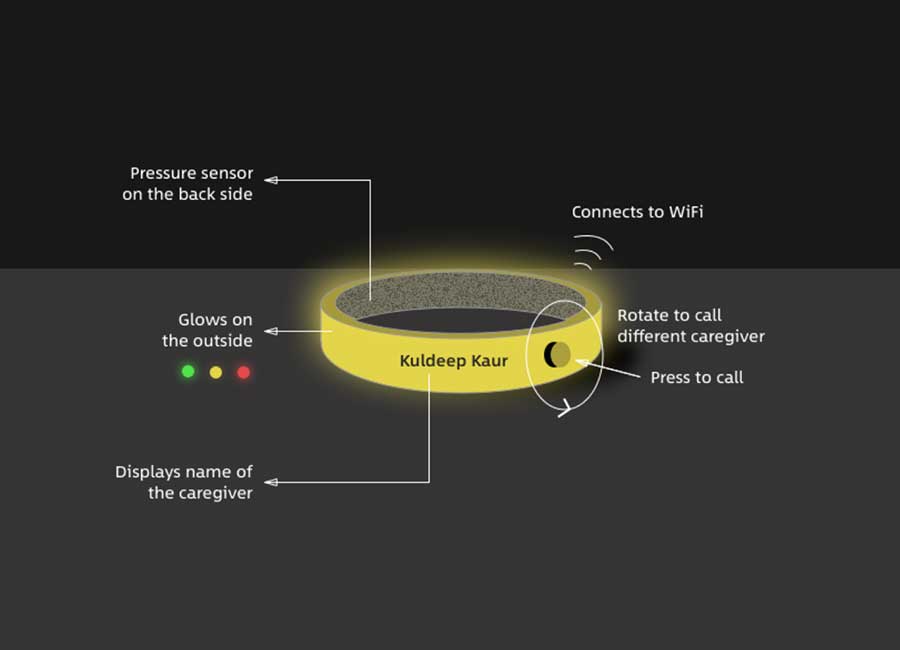

Hypertension

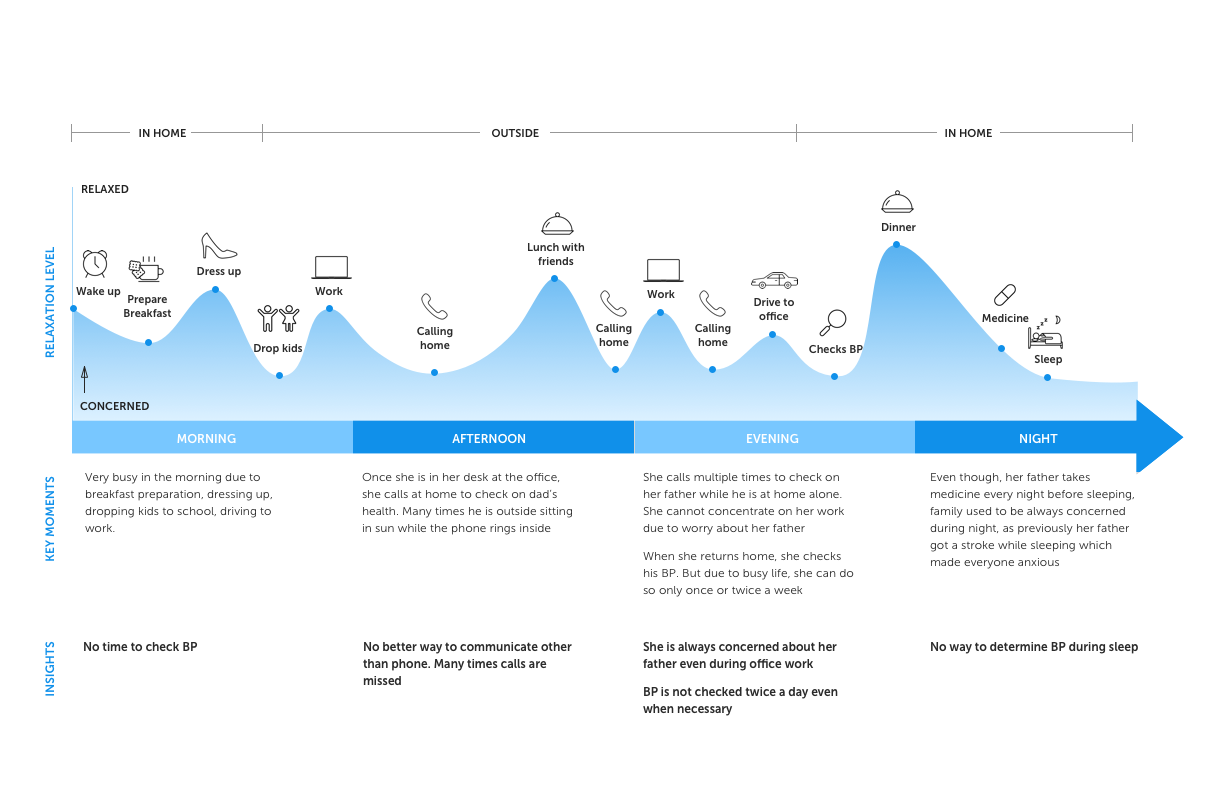

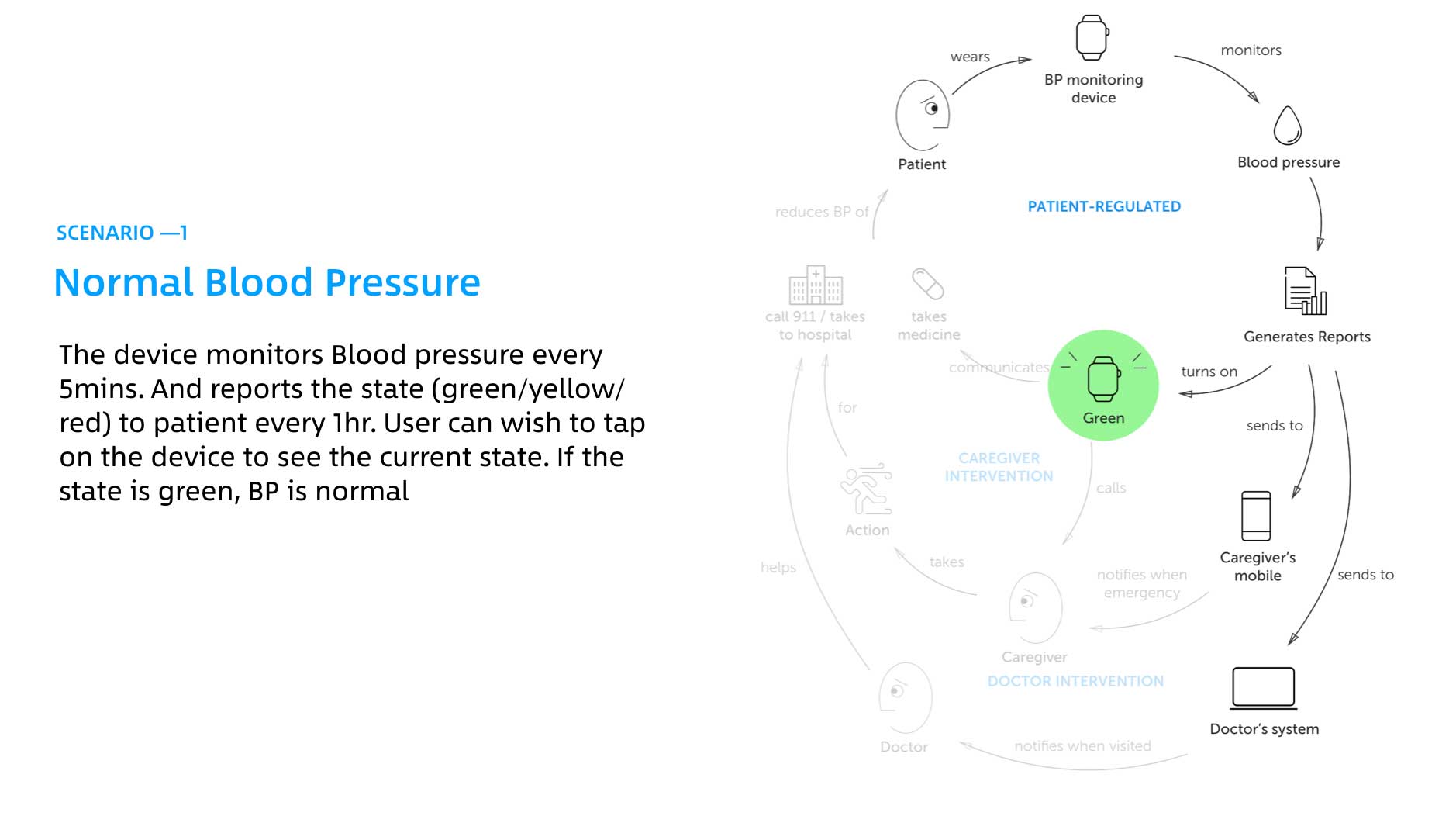

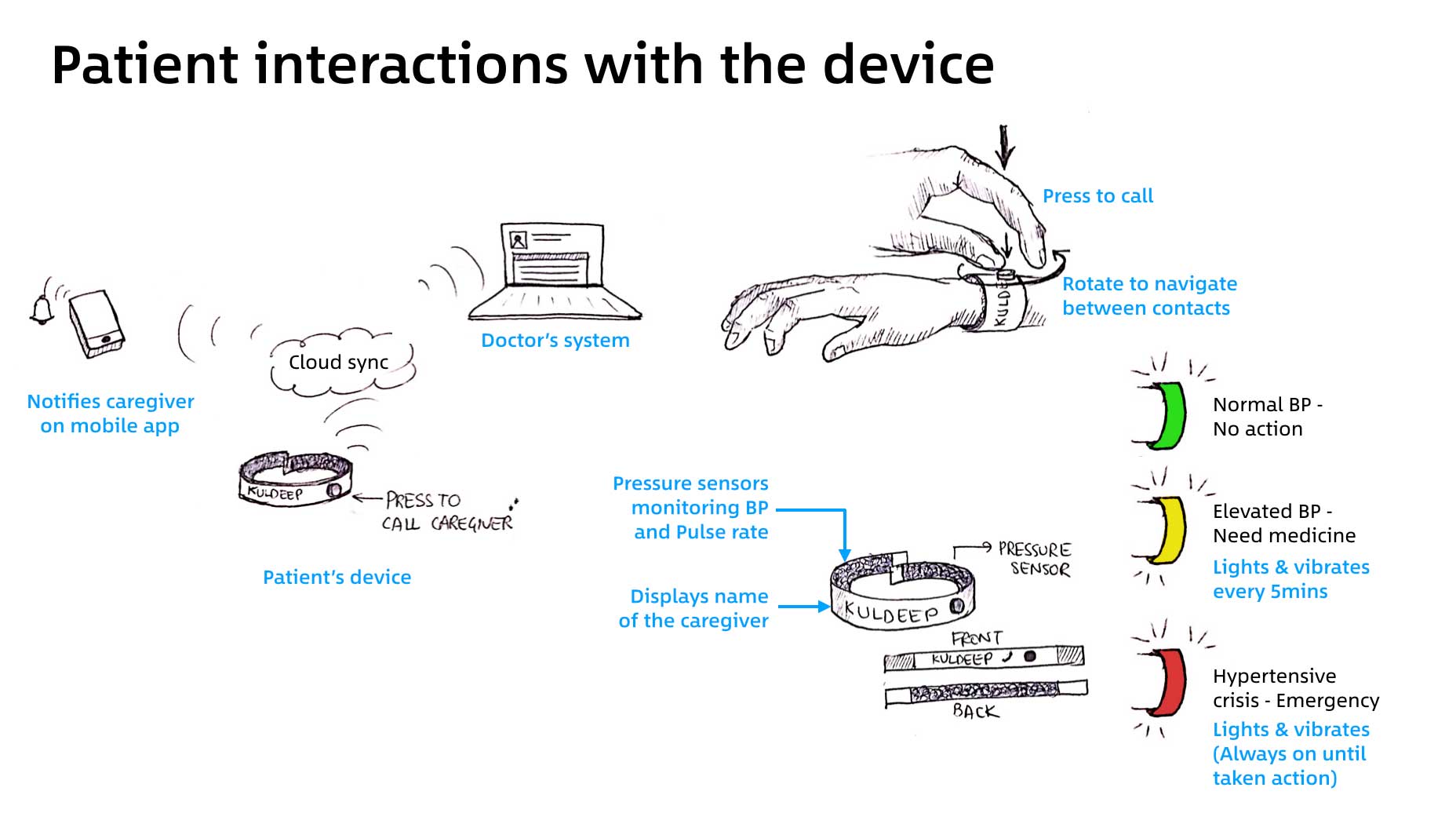

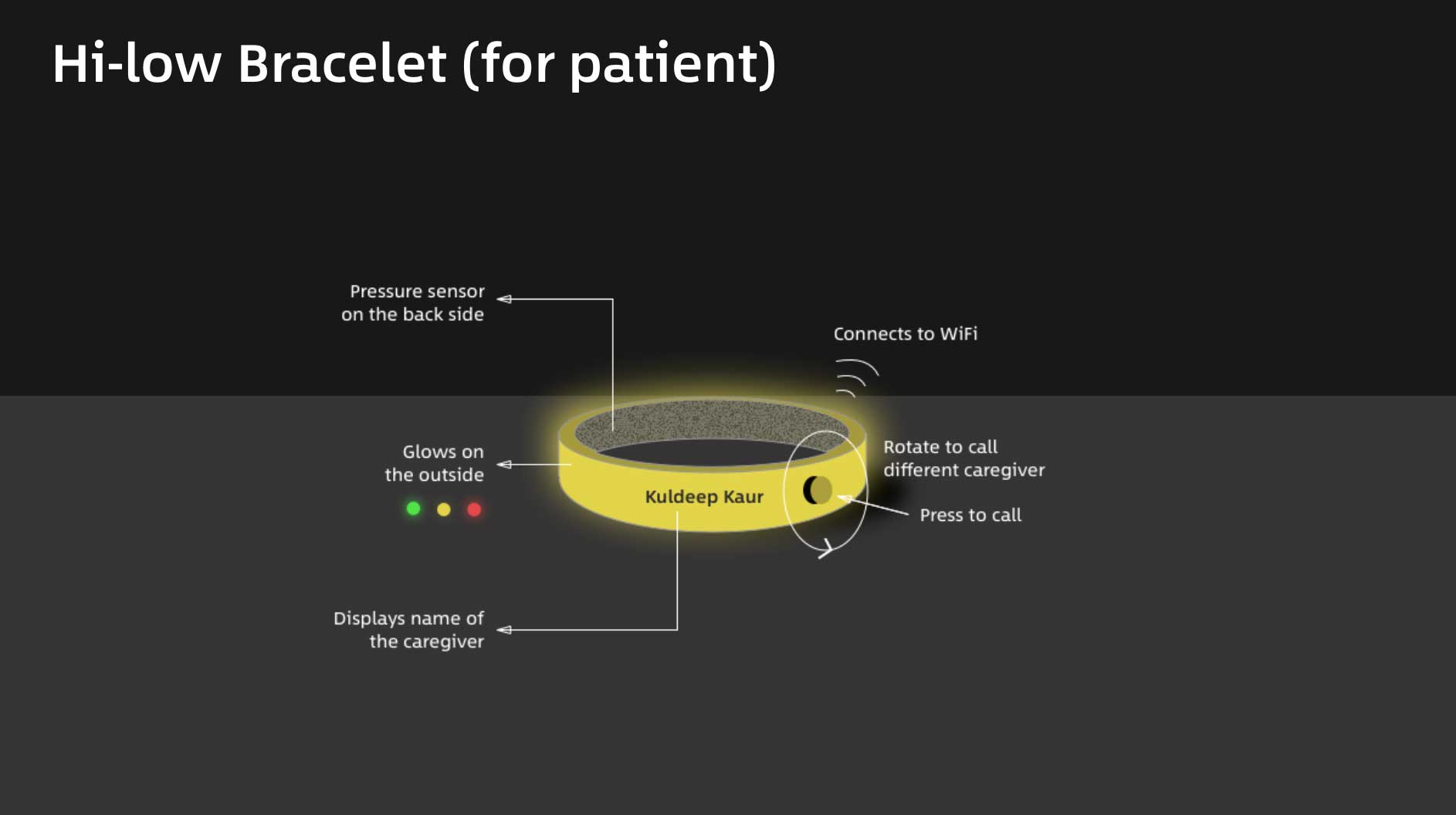

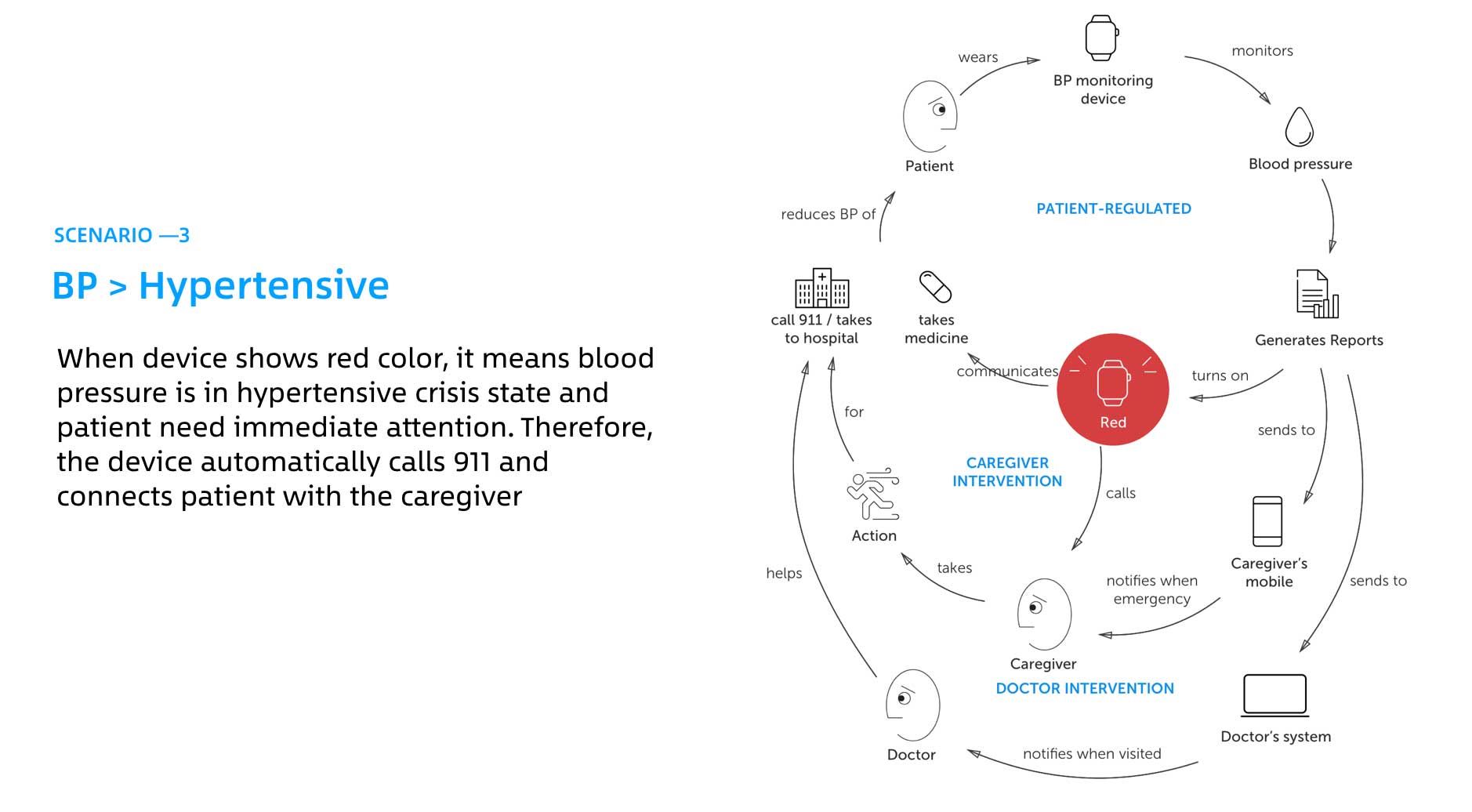

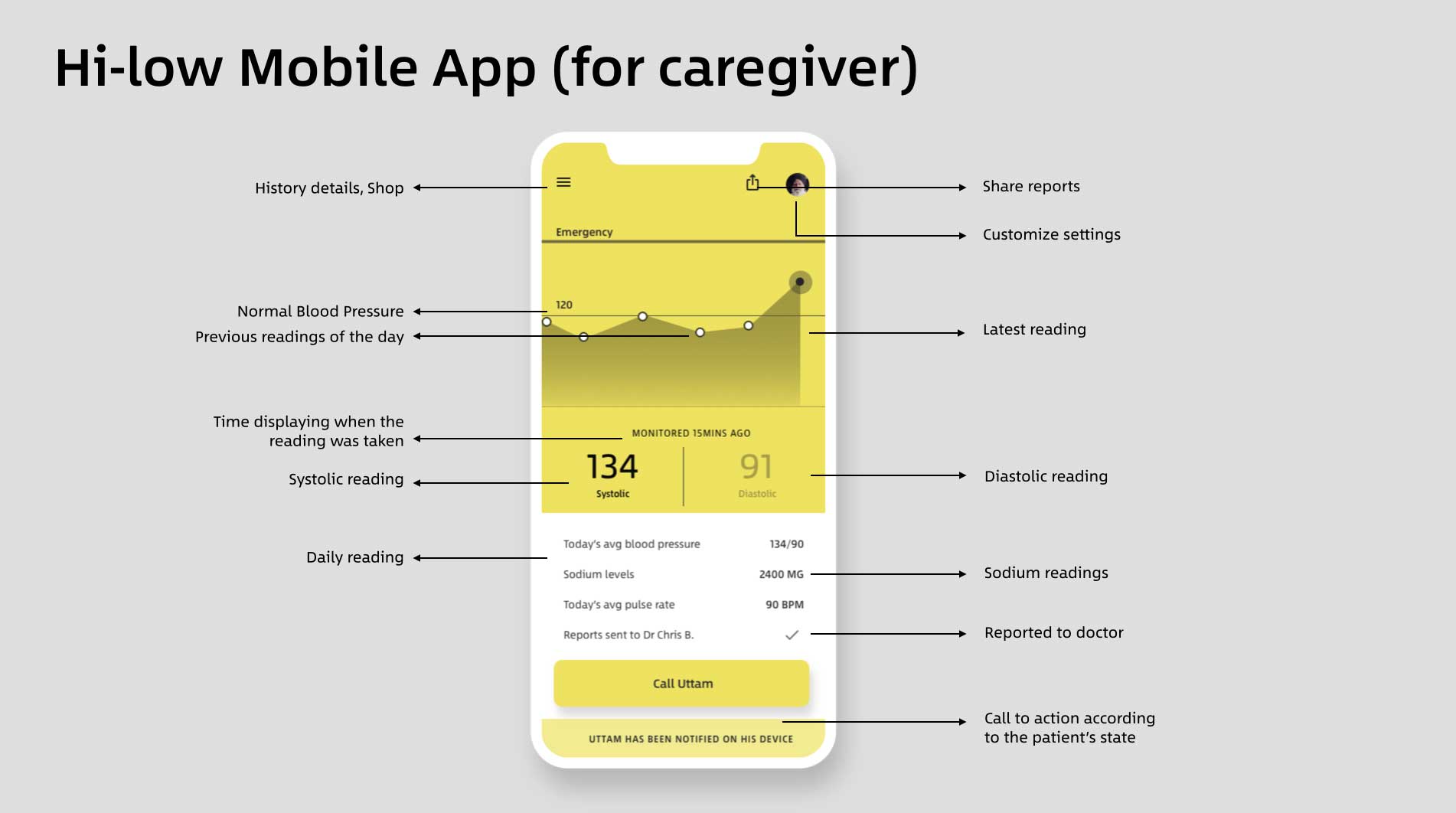

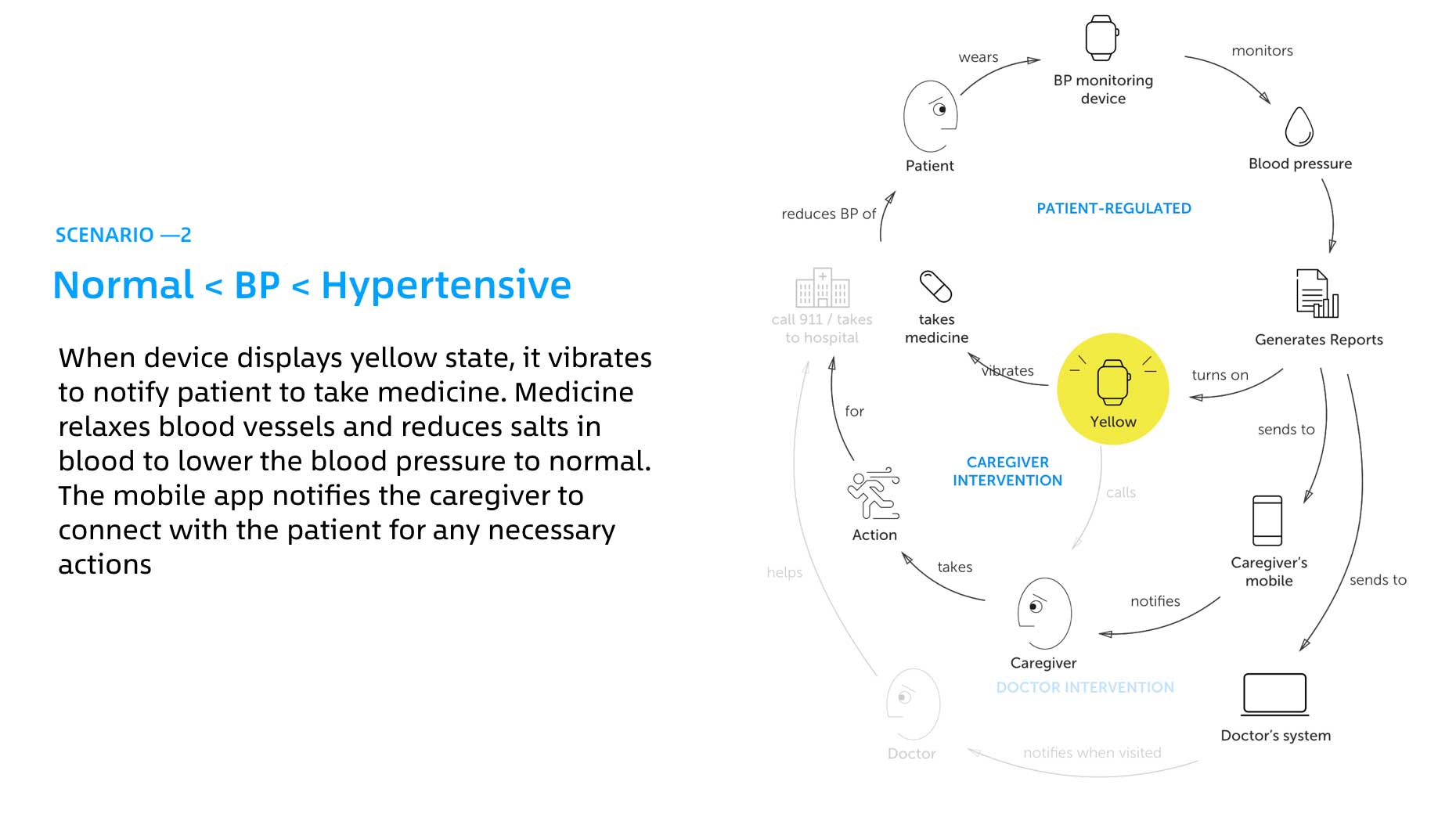

Imagine sensors that monitor body chemistry painlessly and connect to “the cloud”. Imagine other cloud-connected devices that deliver therapies. How could such technology be integrated into people’s lives to help them and their caregivers better manage chronic conditions? Design an integrated “ecology”.

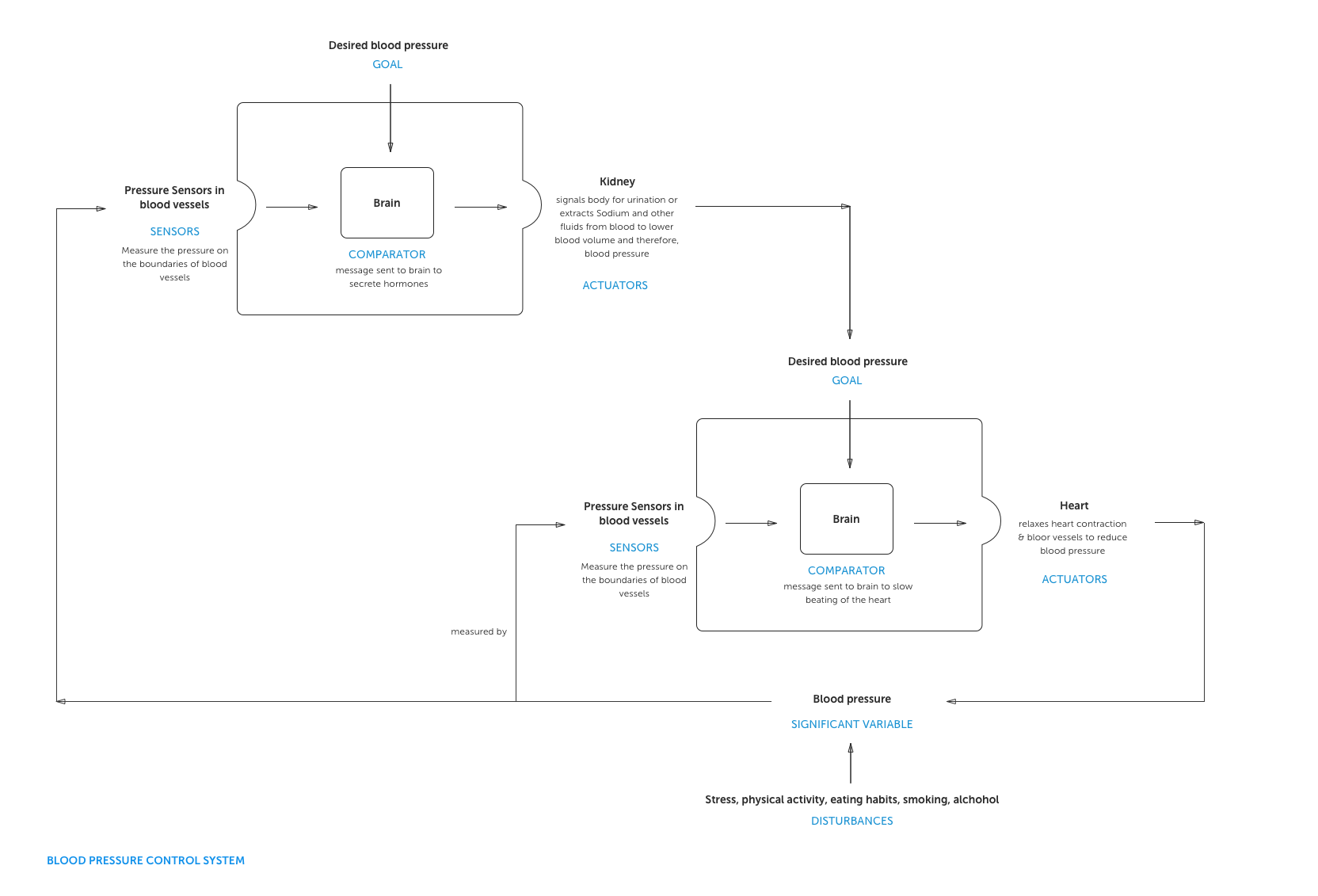

What is Hypertension

A condition in which the force of the blood against the artery walls is too high. Blood pressure levels fluctuate throughout the day and can easily change as a result of stress, physical activity and even talking.

You can have high blood pressure and experience no obvious symptoms until you experience a stroke or heart attack. In some people, severe high blood pressure can result in nosebleeds, headaches, or dizziness

Current state

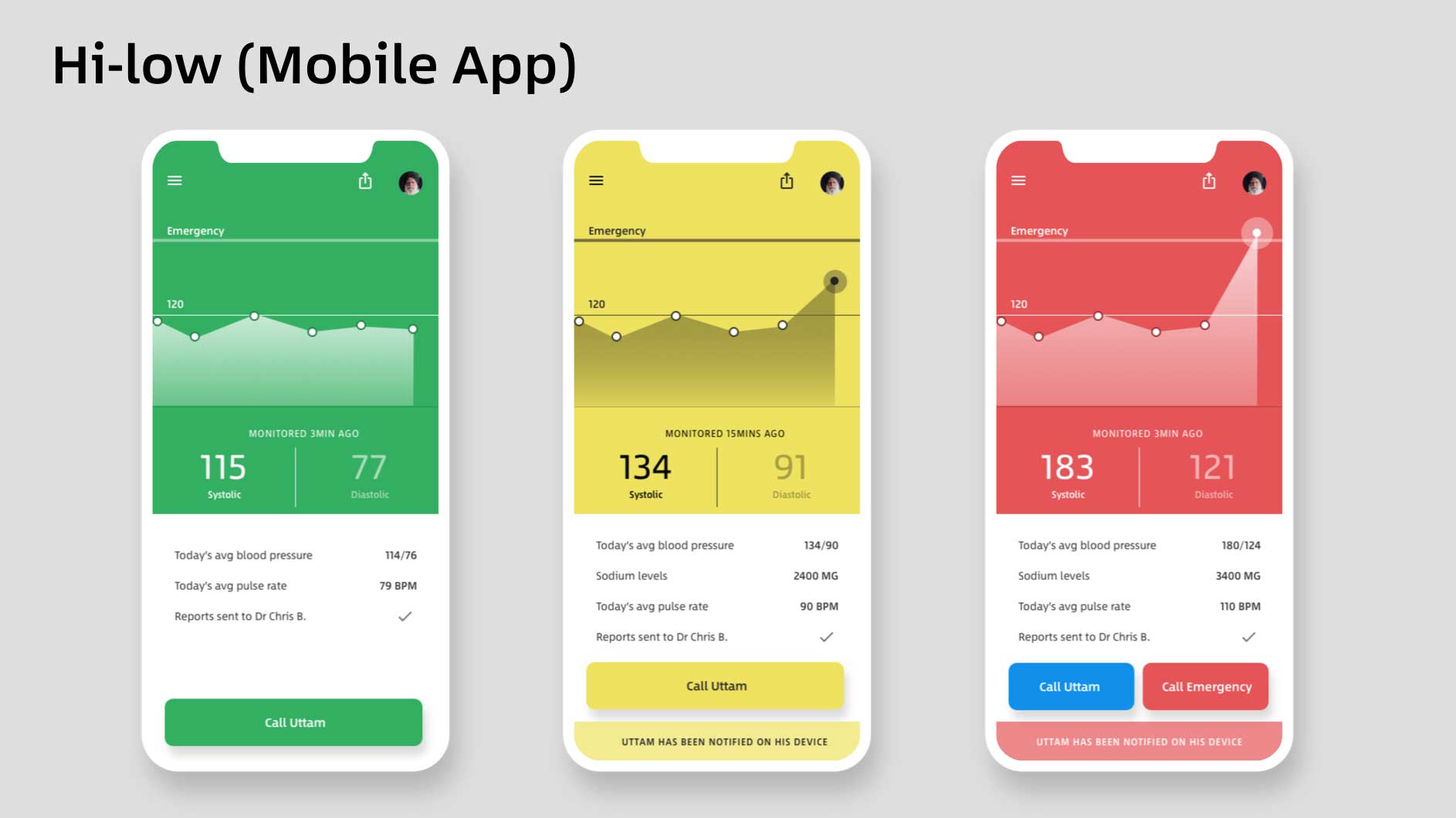

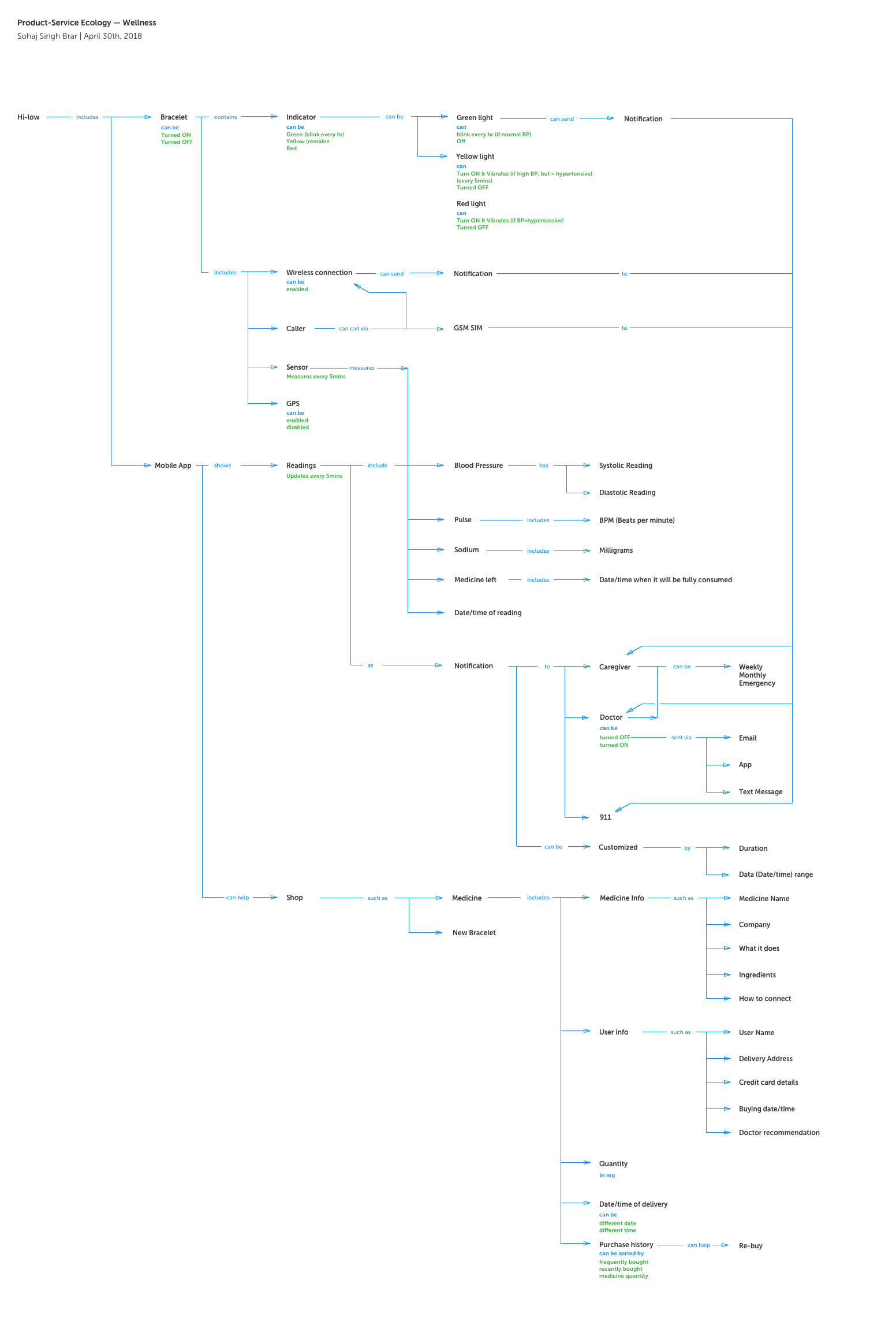

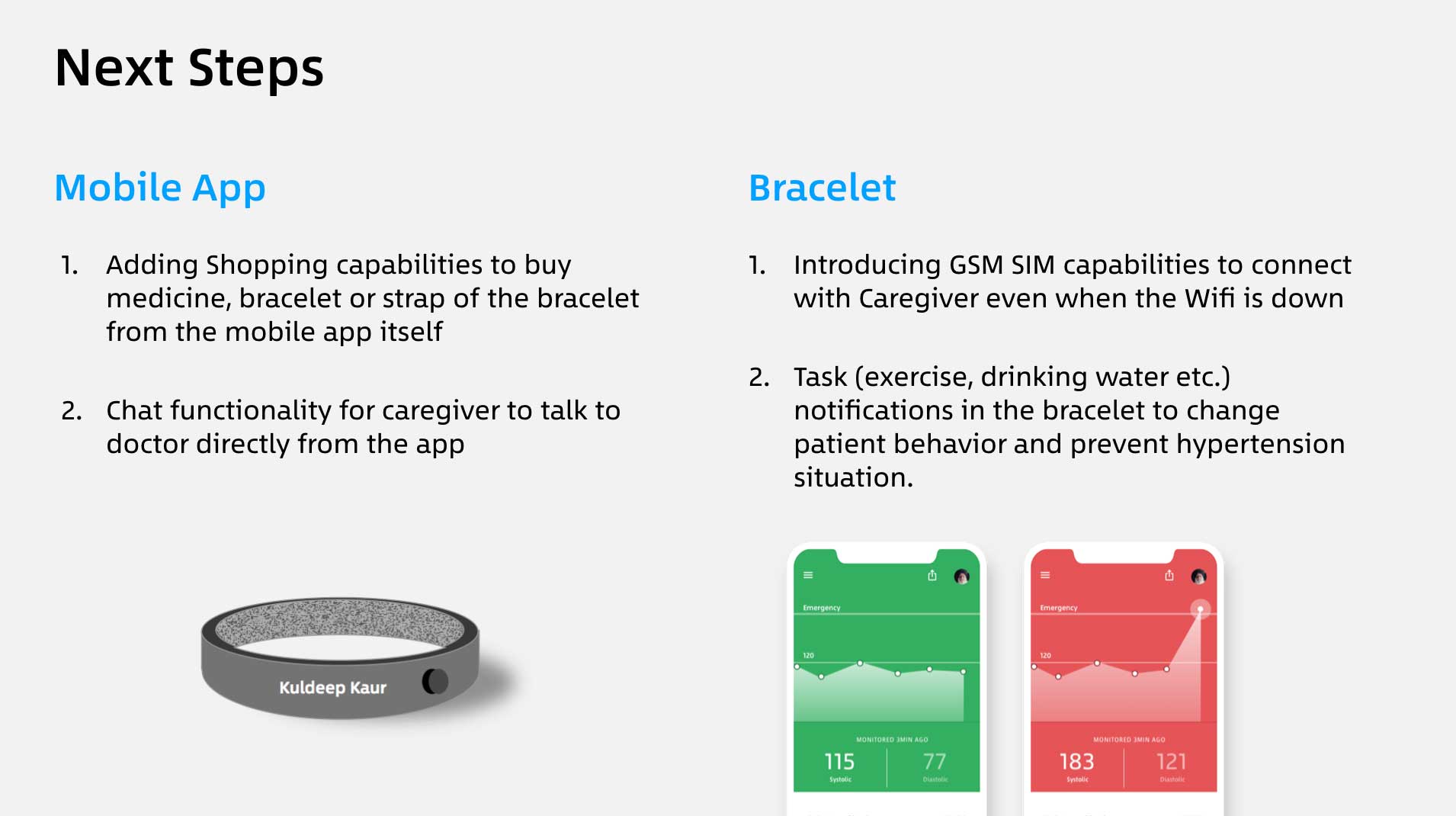

Future State

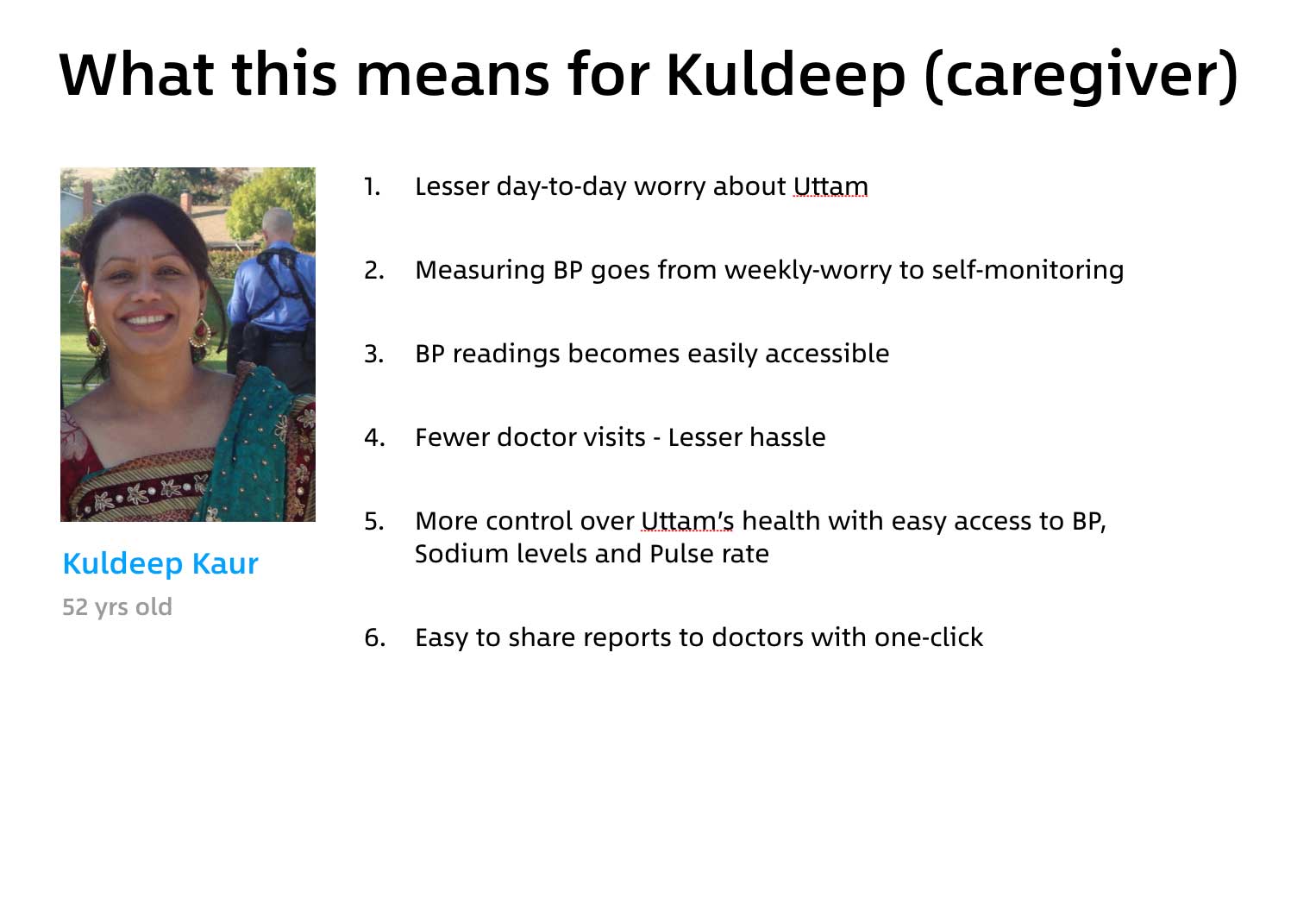

Takeaways

To make changes to physical exercises and mental activities is really difficult at old age

Conventional screen devices are not always the right solution, especially for elderly people

Learning so much about BP and its monitoring, I don’t miss a chance of measuring my own BP now

Readings
